Hyundai Sonata: Heater / Mode Control Actuator Components and Components Location

Hyundai Sonata LF 2014-2019 Service Manual / Heating, Ventilation and Air Conditioning / Heater / Mode Control Actuator Components and Components Location

Components Location

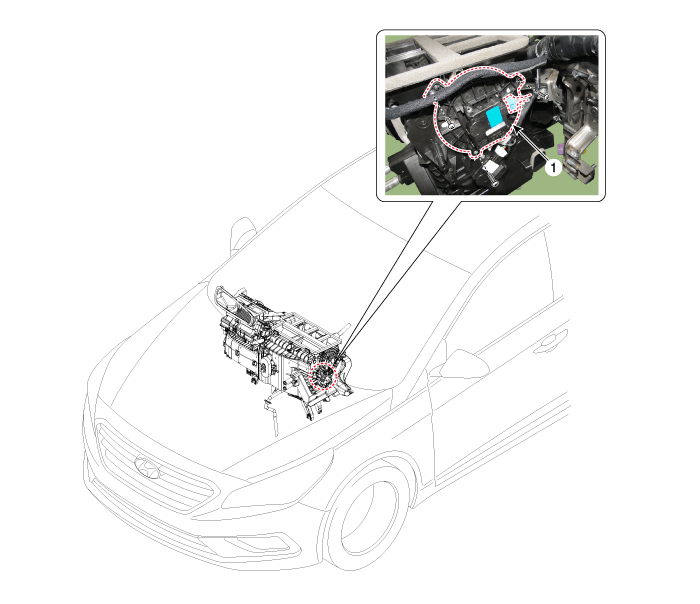

1. Mode control actuator

Temperature Control Actuator Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the temperature control actuator connector. 3. Verify that the temperature control actuator operates to the cool position when c ...

Mode Control Actuator Description and Operation
Description The mode control actuator is located at the heater unit. It adjusts the position of the mode door by operating the mode control actuator based on the signal of the A/C control unit. ...
