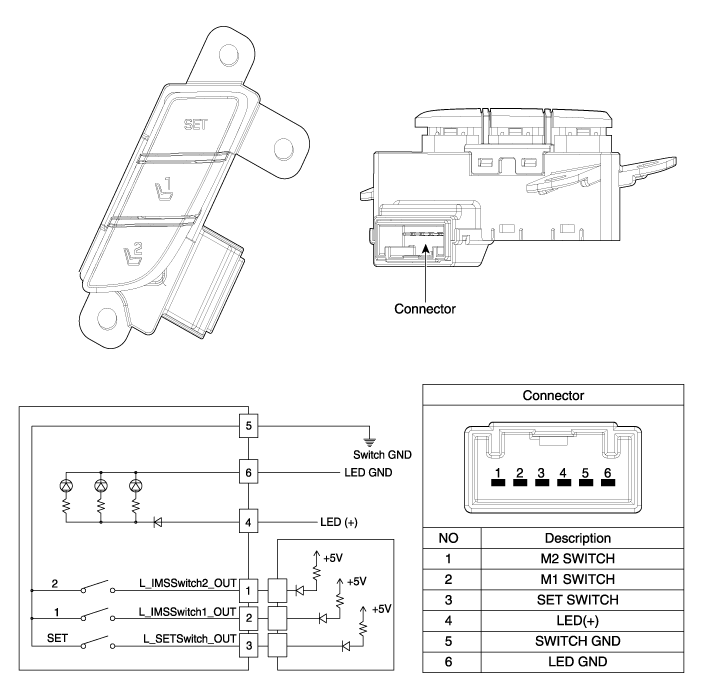

Hyundai Sonata LF: IMS(Integrated Memory System) / Memory power seat switch Components and Components Location

Memory power seat unit Repair procedures

Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the driver seat assembly. (Refer to Body - "Front Seat Assembly") 3. Loosening the IMS unit mounting screws...

Memory power seat switch Repair procedures

Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the driver door trim. (Refer to Body - "Front Door Trim") 3. Remove the memory power seat switch connector (A)...

Other information:

Hyundai Sonata LF 2014-2019 Service Manual: Troubleshooting

Troubleshooting SymptomSuspect AreaRemedy (Refer to page)Water leaks from panorama sunroofDirt accumulated in drain tubeClear dirt inside of drainClogged drain tubeBlow air into drain to remove dirtBroken or dislocated drain tube, defective or cracked clipCheck tube installation and flange contactDeteriorated roof lid weatherstripReplaceExcessive roof lid-to-body clearance and improperly fitted weatherstripAdjustWind noise around panorama sunroofLoosen or deformed deflector, gaps in body workRetighten adjust or replaceMisaligned weather stripReadjust or replace weather stripSunroof lid makes a noise when moveForeign particles lodged in guide railCheck drive cable and guide rails for foreign particlesLoosen guide rails and lidRetightenMotor runs but panorama sunroof does not move or moves only partiallyForeign particles lodged in guide railAdjust or replaceIncorrect engagement of motor pinion with drive cableDecrease in motor`s clutch slipping forceIncreased sunroof sliding resistance or interference of sunroof with drive cables, weatherstrip, etc...

Hyundai Sonata LF 2014-2019 Service Manual: Drive Belt Tensioner Repair procedures

Removal and Installation 1. Remove the drive belt. (Refer to Timing System - "Dreve Belt") 2. Remove the alternator. (Refer to Engine Electrical System - "Alternator") 3. Remove the alternator bracket (belt tunsioner) (A). Tightening torque : 19...
