Hyundai Sonata: Engine Control System / Injector Schematic Diagrams

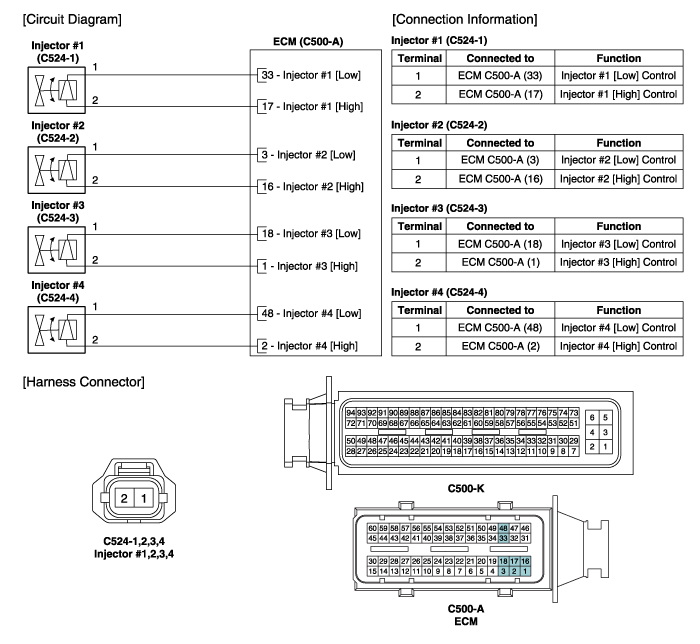

Circuit Diagram

Injector Troubleshooting
Signal Waveform The three waveforms below are taken from the #1 and #4 injectors. The top waveform is from the high side (feed side) of the #1 and #4 injectors, while the middle waveform is fro ...

Injector Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the injector connector. 3. Measure resistance between the injector terminals 1 and 2. 4. Check that the resistance is within t ...
