Hyundai Sonata: Dual Clutch Transmission Control System / Inhibitor Switch Schematic Diagrams

Hyundai Sonata LF 2014-2019 Service Manual / DCT (Dual Clutch Transmission) System / Dual Clutch Transmission Control System / Inhibitor Switch Schematic Diagrams

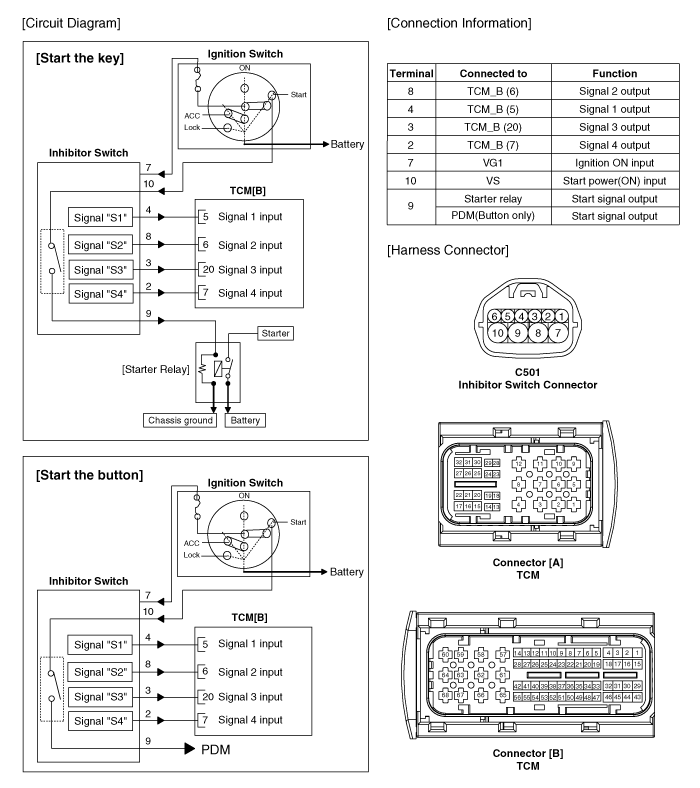

Circuit Diagram
