Hyundai Sonata LF: Body (Interior and Exterior) / Rear Bumper

Hyundai Sonata LF 2014-2019 Service Manual / Body (Interior and Exterior) / Rear Bumper

Components and Components Location

Components

1. Rear bumper cover
2. Rear bumper retainer cover

3. Rear bumper side bracket [LH]
4. Rear bumper side bracket [RH]

Rear Bumper Cover Components and Components Location

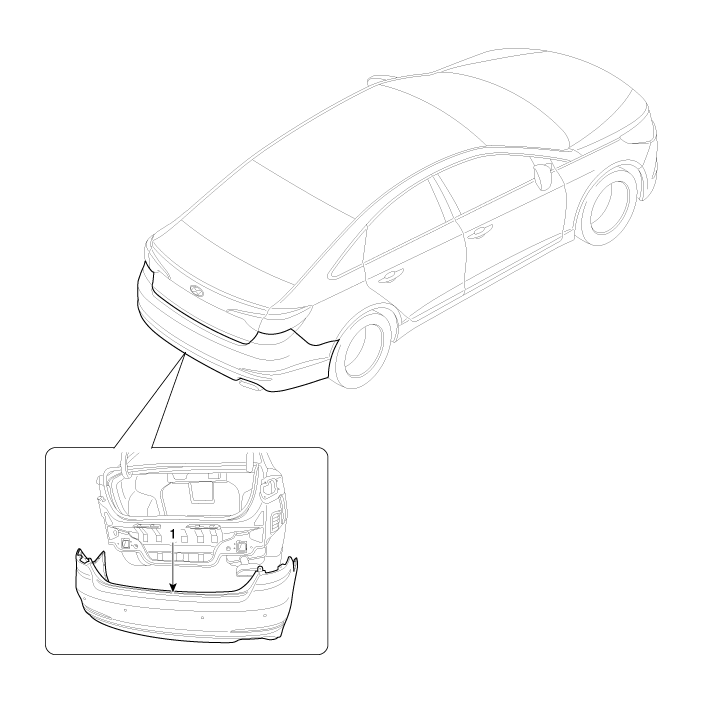

Component Location

1. Rear bumper cover

Rear Bumper Cover Repair procedures

Replacement

•	Put on gloves to protect your hands.

•	When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.

•	Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.

•	Take care not to bend or scratch the trim and panels.

1.	Disconnect the connector (A), and then loosen the rear combination lamp mounting nuts.

2.	Remove the rear combination lamp (A).

After loosening the rear bumper (A) side's mounting screws and clip, then disconnect the side's.

•	Remove the rear bumper by pulling up the side of the rear bumper and then pull it out.

•	When you pull out the front bumper, the side part of the rear bumper could be damaged by the projection.

4.	After loosening the mounting clip and nuts, then remove the rear bumper retainer cover (A).

5.	Loosen the rear bumper lower mounting clips and nuts.

6.	Loosen the rear bumper mounting bolt inside of the trunk.

7.	Remove the luggage boad cover (A).

8.	After loosening the mounting clips, then remove the rear transverrse trim (A).

9.	Loosen the mounting screw and separate the luggage side trim [LH].

10.	Disconnect the rear bumper main connector (A).

11.

Install in the reverse order of removal.

•	Make sure the connector is connected properly.

•	Replace any damage clips.

Rear Bumper Beam Assembly Components and Components Location

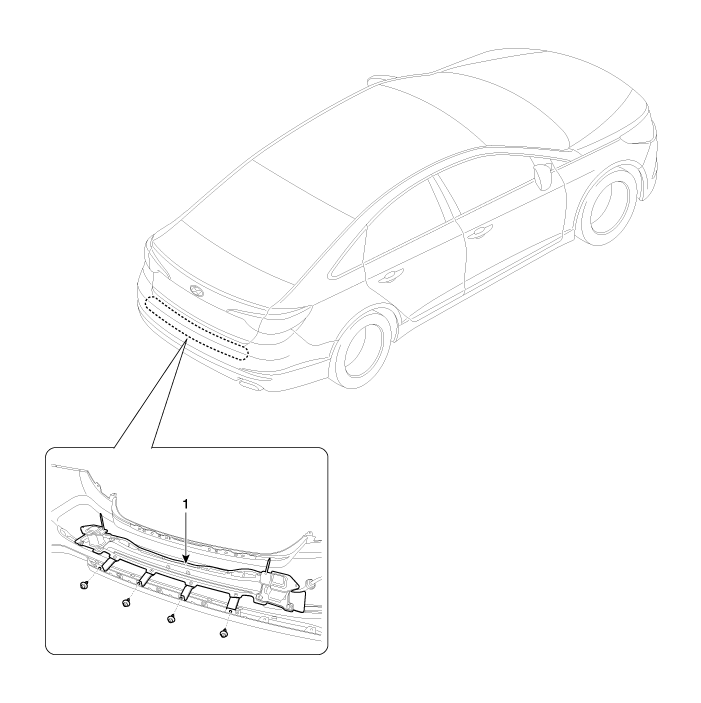

Component Location

1. Rear bumper beam assembly

Rear Bumper Beam Assembly Repair procedures

Replacement

•	Put on gloves to protect your hands.

•	When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.

•	Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.

•	Take care not to bend or scratch the trim and panels.

1.	Remove the rear bumper cover. (Refer to Rear Bumper - "Rear Bumper Cover")

2.	After loosening the mounting clips, then remove the rear bumper center under cover (A).

3.	Disconnect the rear bumper beam mounting wiring harness.

4.	Remove the mounting clips (A), then remove the rear bumper beam assembly (B).

Install in the reverse order of removal.

•	Make sure the connector is connected properly.

•	Replace any damage clips.
