Hyundai Sonata LF: Body (Interior and Exterior) / Fender
Components and Components Location
| Component Location |

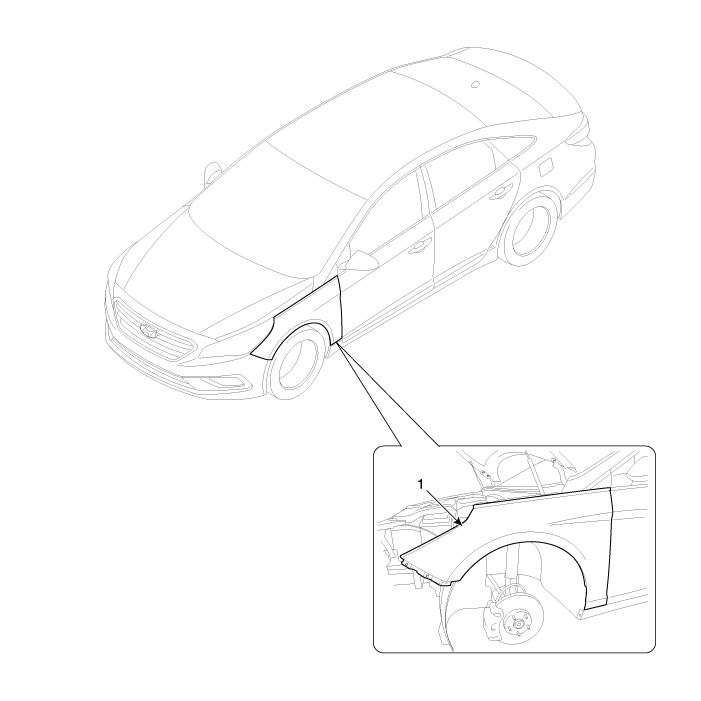

| 1. Fender assembly |
Repair procedures
| Replacement |
|
|
| 1. |
Remove the front bumper.
(Refer to Front Bumper - "Front Bumper Cover") |
| 2. |
Remove the head lamps.
(Refer to Body Electrical System - "Head Lamps") |
| 3. |
Remove the side sill moulding.
(Refer to Body Side Moulding - "Side Sill Moulding") |
| 4. |
Remove the front wheel guard.
(Refer to Body Side Moulding - "Front Wheel Guard") |
| 5. |
Remove the delta garnish.
(Refer to Body Side Moulding - "Delta Garnish") |
| 6. |
Remove the front bumper side mounthing bracket (A) after loosening the screw and bolt.
|
| 7. |
Remove the fender assembly (A) after loosening the nut and bolts.
|
| 8. |
Install in the reverse order of removal.
|
