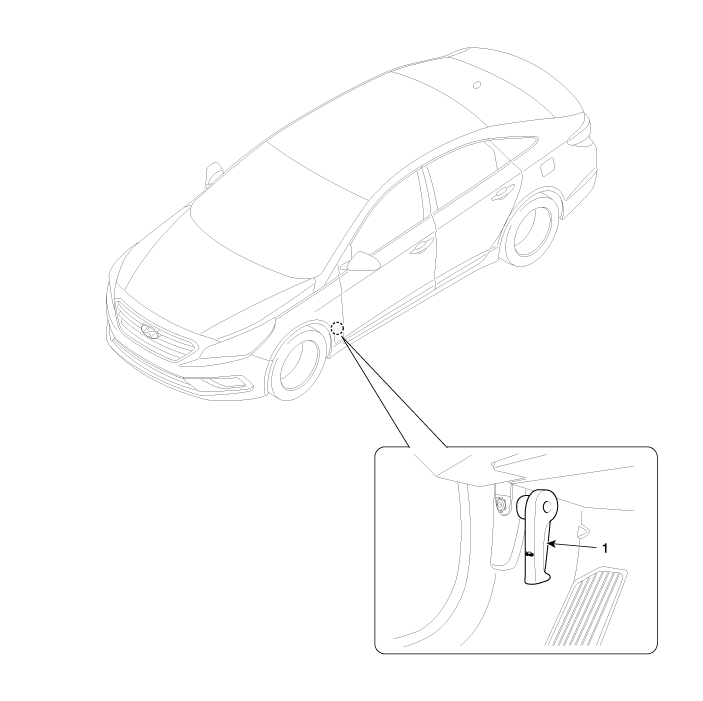

Hyundai Sonata: Hood / Hood Latch Release Handle Components and Components Location

Hood Insulator Pad Repair procedures

Replacement 1. Using a clip remover, detach the clips, and remove the hood insulator pad (A).     • Be careful not to scratch the hood panel. 2. Install in the rev ...

Hood Latch Release Handle Repair procedures

Replacement 1. Using a socket (B), remove the hood release handle (A). 2. Install in the reverse order of removal.     • Make sure the hood latch cable is connected pro ...
