Hyundai Sonata: Exterior features / Hood

Opening the hood

1. Park the vehicle and set the parking brake.

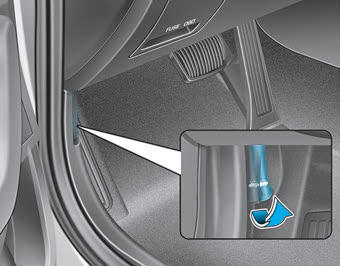

2. Pull the release lever to unlatch the hood. The hood should pop open slightly.

3. Raise the hood slightly, push the secondary latch up (1) inside of the hood center and lift the hood (2). After it has been raised about halfway, it will raise completely by itself.

Hood open warning

The warning message will appear on the LCD display when hood is open.

The warning chime will operate when the vehicle is being driven at or above 3 km/h with the hood open.

Closing the hood

1. Before closing the hood, check the following:

2. Lower the hood halfway (lifted approximately 30 cm from the closed position) and push down to securely lock in place. Then double check to be sure the hood is secure.

WARNING
