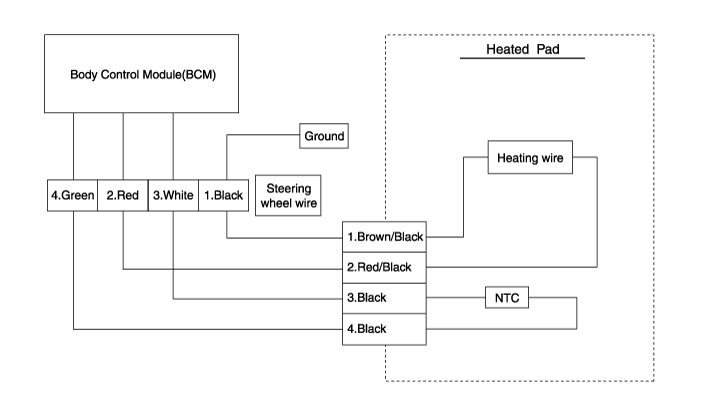

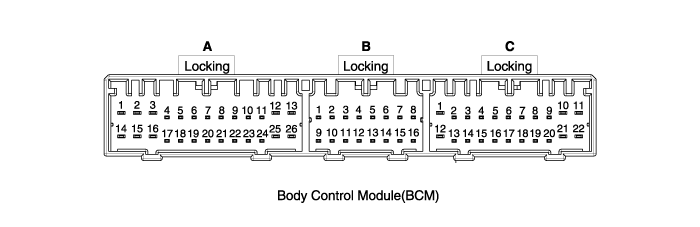

Hyundai Sonata LF: Steering wheel / Heated Steering wheel Schematic Diagrams

Heated Steering wheel Description and Operation

Description Heated pads to grip the steering grip makes the fever. 1. Heated control unit TypeTemperatureRemarksLeather38°C±4°CApply to the entire lather surface 2...

Heated Steering wheel Repair procedures

Inpection 1. Measure a resistance of NTC and Heated pad. A. NTC resistance(Black / Yellow, Black) - 10.0 k? ± 10% (25°C) B. Heated pad resistance (Yellow, Black) - 1...
