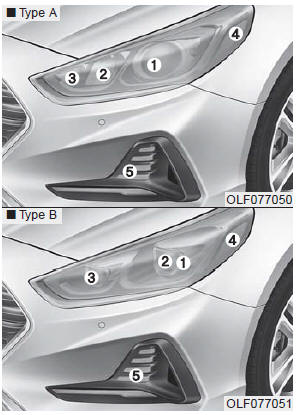

(1) Headlamp (Low)
(2) Headlamp (High)
(3) Turn signal lamp
(4) Front side marker
(5) Daytime running lamp/ Parking lamp

Headlamp (Halogen bulb)

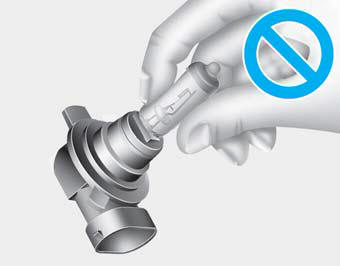

WARNING



1. Open the hood.

2. Disconnect the negative battery cable.

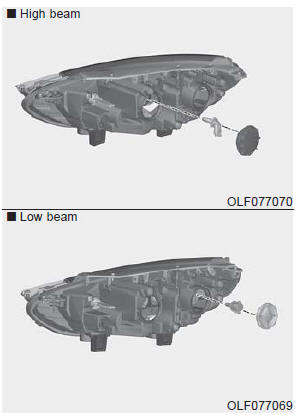

3. Remove the headlamp bulb cover by turning it counterclockwise.

4. Disconnect the headlamp bulb socket-connector.

5. Unsnap the headlamp bulb retaining wire by pressing the end and pushing it upward.

6. Remove the bulb from the headlamp assembly.

7. Install a new headlamp bulb and snap the headlamp bulb retaining wire into position by aligning the wire with the groove on the bulb.

8. Connect the headlamp bulb socket- connector.

9. Install the headlamp bulb cover by turning it clockwise.

Information

The headlamp aiming should be adjusted after an accident or after the headlamp assembly is reinstalled at an authorized HYUNDAI dealer.

Headlamp (LED type)

If the light bulb does not operate, we recommend that the system be checked by an authorized HYUNDAI dealer.

Turn signal lamp

1. Open the hood.

2. Disconnect the negative battery cable.

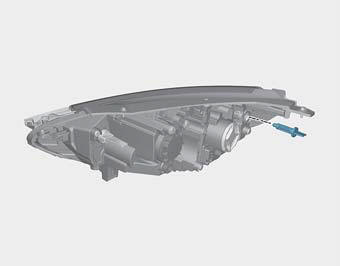

3. Remove the socket from the assembly by turning the socket counterclockwise until the tabs on the socket align with the slots on the assembly.

4. Remove the bulb from the socket by pressing it in and rotating it counterclockwise until the tabs on the bulb align with the slots in the socket. Pull the bulb out of the socket.

5. Insert a new bulb by inserting it into the socket and rotating it until it locks into place.

6. Install the socket in the assembly by aligning the tabs on the socket with the slots in the assembly.

7. Push the socket into the assembly and turn the socket clockwise.

Side marker

1. Open the hood.

2. Disconnect the negative battery cable.

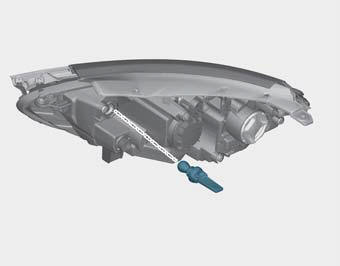

3. Remove the socket from the assembly by turning the socket counterclockwise until the tabs on the socket align with the slots on the assembly.

4. Remove the bulb from the socket by pulling out the bulb.

5. Insert a new bulb.

Daytime running lamp/ Position lamp

If the LED lamp does not operate, have the vehicle checked by an authorized HYUNDAI dealer.

Light Bulbs
Consult an authorized HYUNDAI dealer to replace most vehicle light bulbs. It is difficult to replace vehicle light bulbs because other parts of the vehicle must be removed before you can get to the ...

Side Repeater Lamp Replacement
If the LED lamp does not operate, have the vehicle checked by an authorized HYUNDAI dealer. ...
