Hyundai Sonata: Crash Pad / Glove Box Upper Cover Assembly Repair procedures
• |
Put on gloves to protect your hands. |
|
• |
When prying with a flat-tip screwdriver or use a prying trim
tool, wrap it with protective tape, and apply protective tape around the
related parts, to prevent damage. |
• |
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface. |
• |
Take care not to bend or scratch the trim and panels. |
|
1. |
Disconnect the stopper (B) from the glove box (A). ![](images/glove_box_upper_cover_assembly_repair_procedures-1592/1007/sdhbd3113d.gif)
|
2. |
Disconnect the air damper (A) from the glove box (B). ![](images/glove_box_upper_cover_assembly_repair_procedures-1592/1007/slfbd4410d.gif)
|
3. |

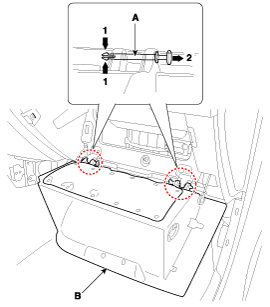

Disconnect the pins (A) and then remove the glove box (B). ![](images/glove_box_upper_cover_assembly_repair_procedures-1592/1007/sdhbd3118d.gif)
|
4. |
Using a screwdriver or remover, remove the front door scuff tirm [RH] (A). ![](images/glove_box_upper_cover_assembly_repair_procedures-1592/1007/slfbd4121d.gif)
|
5. |
Using a screwdriver or remover, remove the cowl side tirm [RH] (A). ![](images/glove_box_upper_cover_assembly_repair_procedures-1592/1007/slfbd4122d.gif)
|
6. |
Using a screwdriver or remover, remove the crash pad under cover [RH] (A). ![](images/glove_box_upper_cover_assembly_repair_procedures-1592/1007/slfbd4107d_002.gif)
|
7. |
Disconnect the under lamp connector (A). ![](images/glove_box_upper_cover_assembly_repair_procedures-1592/1007/slfbd4108d_002.gif)
|
8. |
Using a screwdriver or remover, remove the crash pad side cover [RH] (A). ![](images/glove_box_upper_cover_assembly_repair_procedures-1592/1007/slfbd4101d.gif)
|
9. |
After loosen the mounting screws, remove the crash pad passenger side garnish (A). ![](images/glove_box_upper_cover_assembly_repair_procedures-1592/1007/slfbd4120d.gif)
|
10. |
After loosen the mounting screws, remove the crash pad side garnish assembly [RH] (A). ![](images/glove_box_upper_cover_assembly_repair_procedures-1592/1007/slfbd4100d.gif)
|
11. |
After loosening the mounting screws, then remove the glove box upper cover assembly (A) by using a screw driver. ![](images/glove_box_upper_cover_assembly_repair_procedures-1592/1007/slfbd4105d.gif)
|
12. |
Disconnect the glove box lamp connector (A). ![](images/glove_box_upper_cover_assembly_repair_procedures-1592/1007/slfbd4123d.gif)
|
13. |
Install in the reverse order of removal.
• |
Make sure the connector is connected properly. |
• |
Replace any damage clips. |
|
|
