Hyundai Sonata LF: Front Seat / Front Seat Frame Assembly Components and Components Location

Hyundai Sonata LF 2014-2019 Service Manual / Body (Interior and Exterior) / Front Seat / Front Seat Frame Assembly Components and Components Location

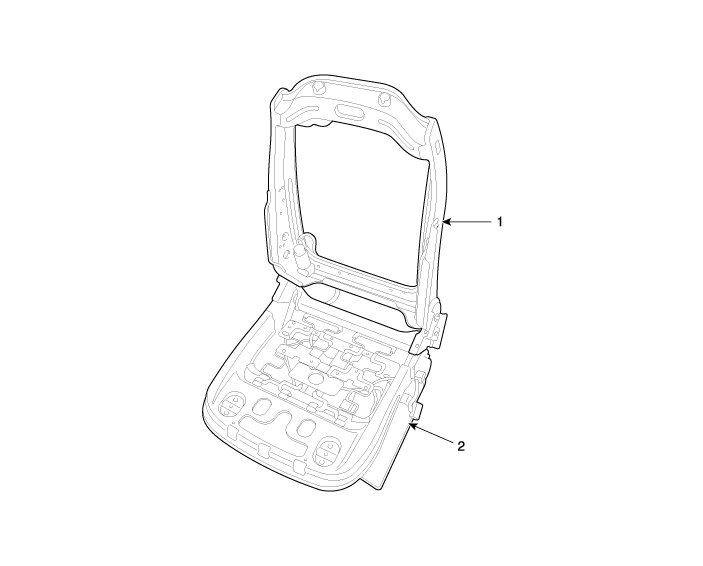

Component Location

1. Front seat back frame assembly
2. Front seat cushion frame assembly

    Front Seat Cushion Cover Repair procedures

    Replacement     • Put on gloves to protect your hands.     • When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage...

    Front Seat Frame Assembly Repair procedures

    Replacement     • Put on gloves to protect your hands.     • When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage...
