Hyundai Sonata: Front Axle Assembly / Front Hub - Axle Components and Components Location

Hyundai Sonata LF 2014-2019 Service Manual / Driveshaft and axle / Front Axle Assembly / Front Hub - Axle Components and Components Location

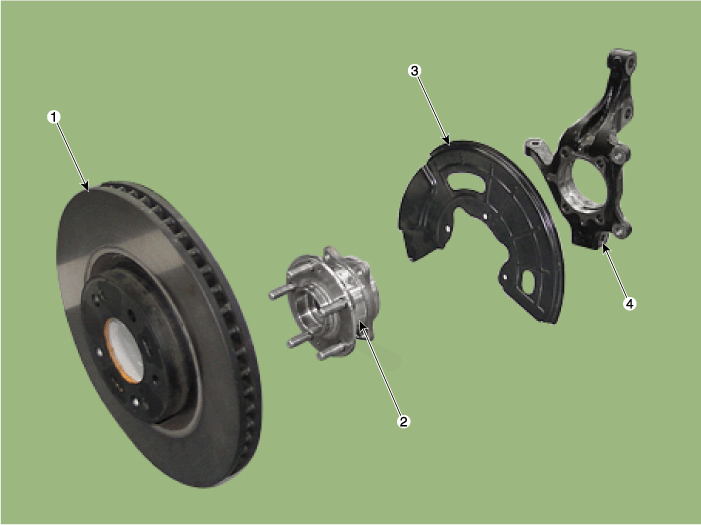

Components

1. Brake disc
2. Hub bearing
3. Dust cover
4. Knuckle
