Hyundai Sonata LF: Floor Console / Floor Console Assembly Repair procedures

Hyundai Sonata LF 2014-2019 Service Manual / Body (Interior and Exterior) / Floor Console / Floor Console Assembly Repair procedures

Replacement

•
Put on gloves to protect your hands.

•
When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
•
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
•
Take care not to bend or scratch the trim and panels.
1.
Remove the gear knob & boots (A) pull both of it up.

2.
Remove the tray (B) by using remover holder hole after removing the rubber mat (A).

3.

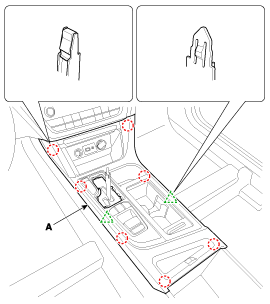

Using a screwdriver or remover, remove the front console upper cover (A).

4.
Disconnect the connectors (A).

5.
Remove the console armrest tray (A).

6.
Remove the storage box pad (A).

7.

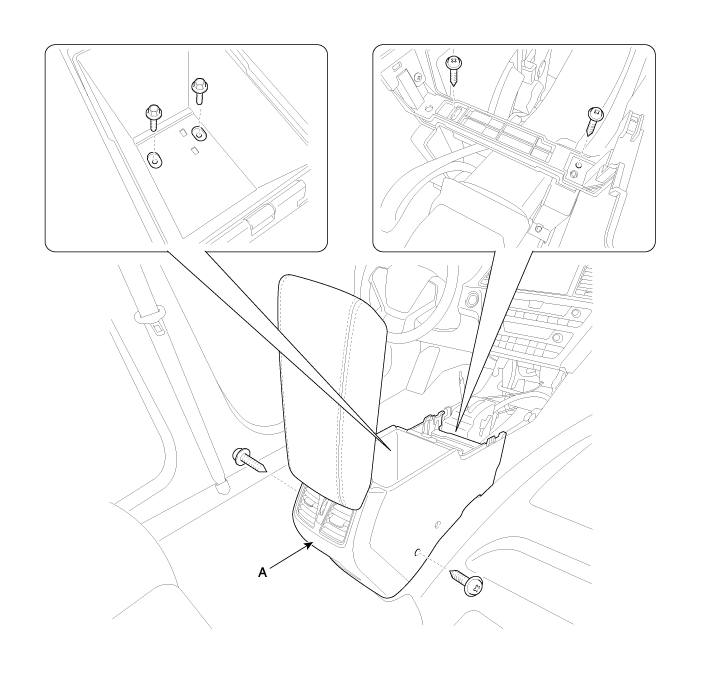

After loosening the mounting screws and bolts, then remove the console rear complete assembly (A).

8.
Disconnect the multimedia jcak connectors (A).

9.
After loosening the mounting screws, then remove the console front complete assembly (A).

10.
Install in the reverse order of removal.

•
Make sure the connector is connected properly.
•
Replace any damage clips.
