If towing is necessary, we recommend you to have it done by an authorized HYUNDAI dealer or a commercial tow truck service.

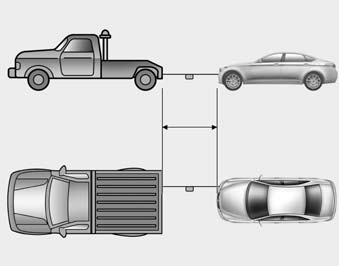

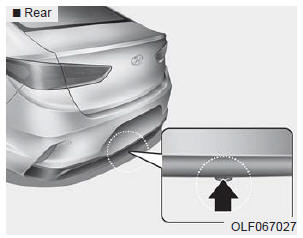

If towing service is not available in an emergency, your vehicle may be temporarily towed using a cable or chain secured to the emergency towing hook at the rear of the vehicle.
Use extreme caution when towing the vehicle with a cable or chain. A driver must be in the vehicle to steer it and operate the brakes.
Towing in this manner may be done only on hard-surfaced roads for a short distance and at low speeds. Also, the wheels, axles, power train, steering and brakes must all be in good condition.
Always follow these emergency towing precautions:
CAUTION
To avoid damage to your vehicle and vehicle components when towing:
