Hyundai Sonata: Parking Brake System / Electric Parking Brake (EPB) Schematic Diagrams

Hyundai Sonata LF 2014-2019 Service Manual / Brake System / Parking Brake System / Electric Parking Brake (EPB) Schematic Diagrams

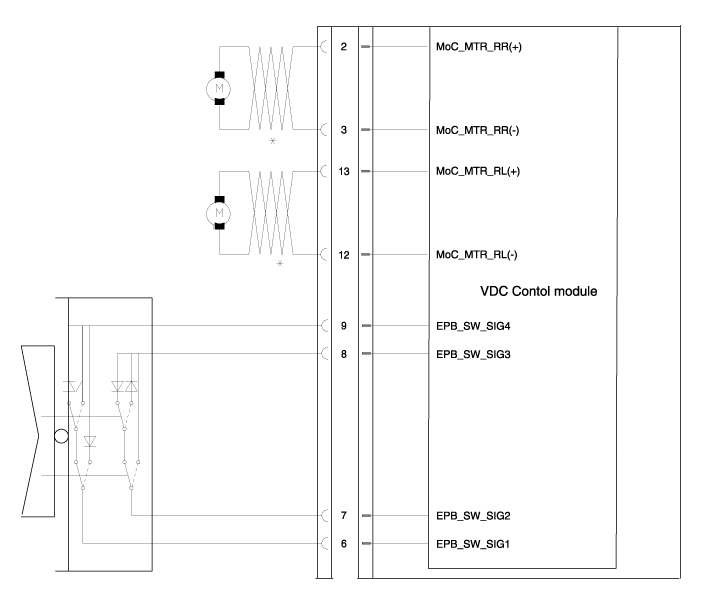

Schematic Diagram

Terminal function
Pin NO
Function
Pin NO
Function
6
EPB signal 1
2
RR EPB motor power
7
EPB signal 2
3
RR EPB motor ground
8
EPB signal 3
12
RL EPB motor power
9
EPB signal 4
13
RL EPB motor ground
