Hyundai Sonata: Air Conditioning System / Description and Operation

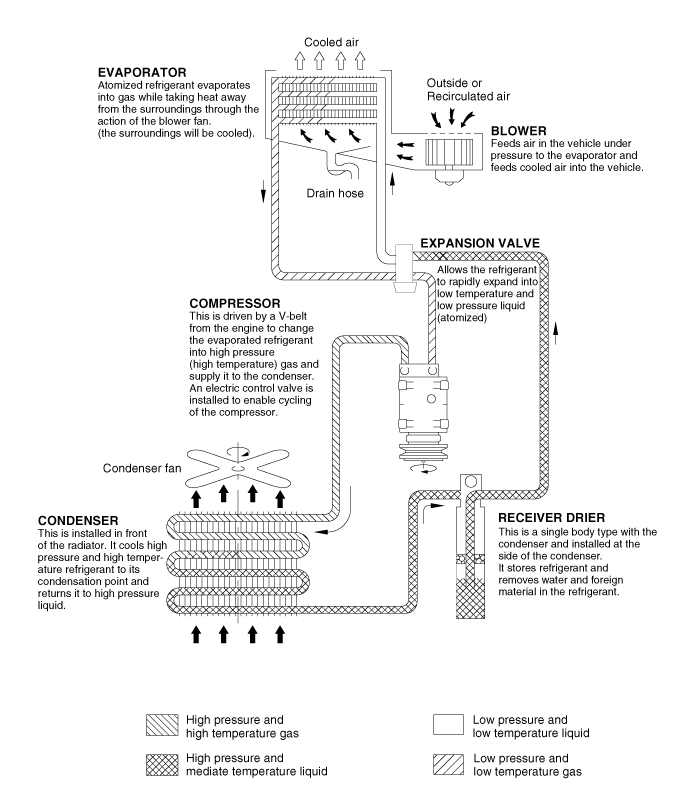

| Refrigeration Cycle |
General Safety Information and Caution
Instructions
When Handling Refrigerant
1.
R-134a liquid refrigerant is highly volatile. A drop on the
skin of your hand could result in localized frostbite. When handling the
refrigerant, be ...
Repair procedures
Refrigerant System Service Basics
Refrigerant Recovery
Use only service equipment that is U.L-listed and is
certified to meet the requirements of SAE J2210 to remove HFC-134a
(R-134a) from th ...
