Hyundai Sonata LF: Air Conditioning System / Components and Components Location

Hyundai Sonata LF 2014-2019 Service Manual / Heating, Ventilation and Air Conditioning / Air Conditioning System / Components and Components Location

Component Location Index

Engine Room

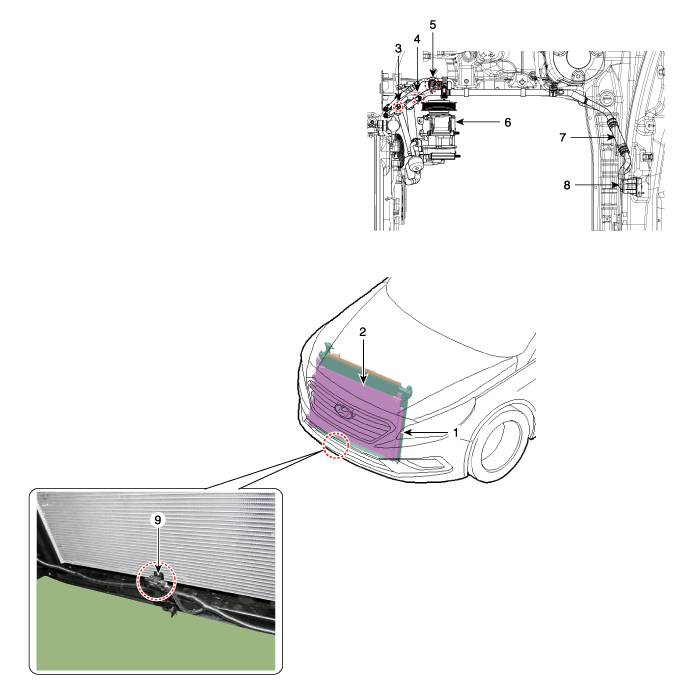

[Theta 2.4 GDI]

1. Receiver-drier
2. Condenser
3. Service Port (High Pressure)
4. Service Port (Low Pressure)
5. A/C Pressure Transducer (APT)

6. Compressor
7. Suction & Liquid Tube Assembly
8. Expansion Valve
9. Ambient temperature Sensor

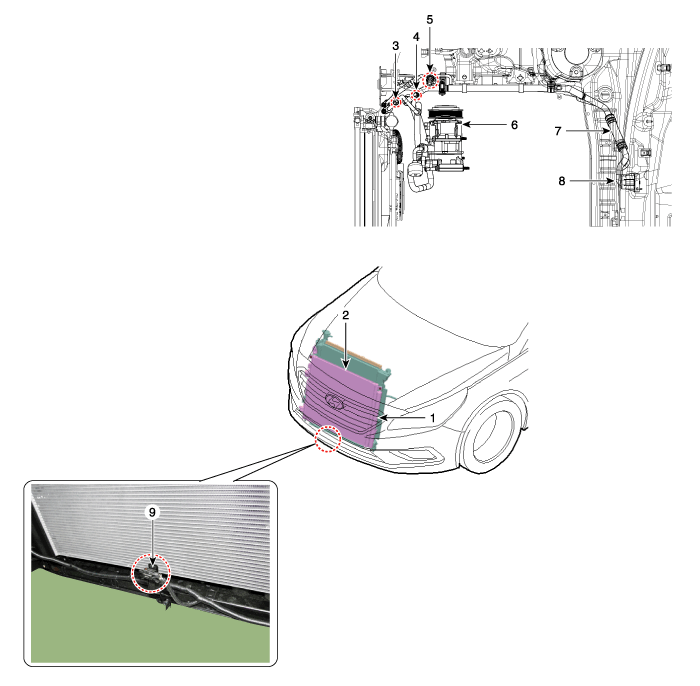

[Gamma 1.6 T-GDI / Theta 2.0 T-GDI]

1. Receiver-drier
2. Condenser
3. Service Port (High Pressure)
4. Service Port (Low Pressure)
5. A/C Pressure Transducer (APT)

6. Compressor
7. Suction & Liquid Tube Assembly
8. Expansion Valve
9. Ambient temperature Sensor

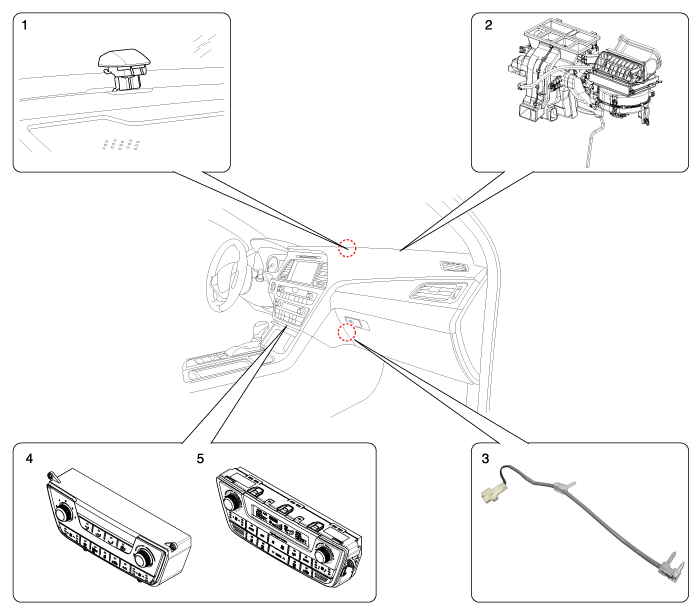

[Interior]

1. Photo Sensor
2. Heater & Blower Unit
3. Evaporator Temperature Sensor

4. Heater & A/C Control Unit (Manual)
5. Heater & A/C Control Unit (DATC)
