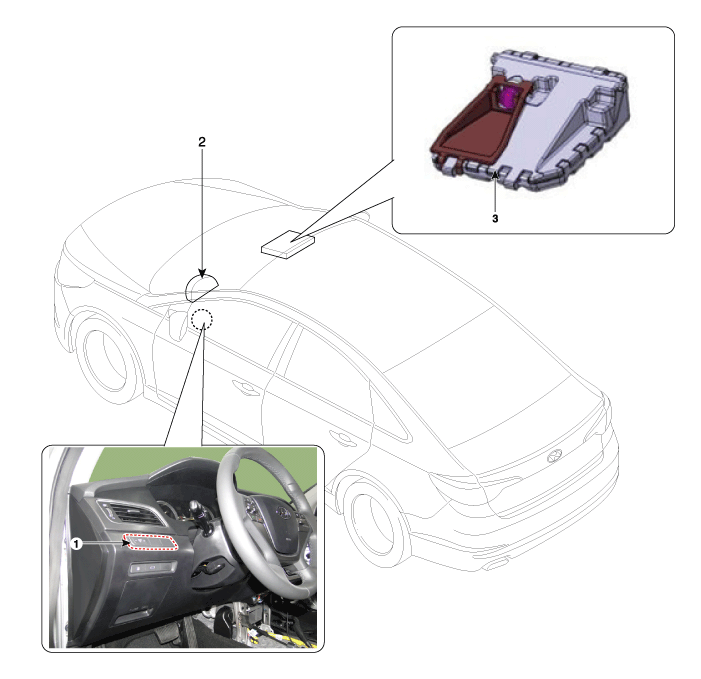

Components

1. LDWS ON/OFF switch
2. Instrument cluster

3. LDWS unit

Lane Departure Warning System (LDWS)

...

Description and Operation

Description Block Diagram LDWS is Composed of Below Units NoItemFunctionPosition1LDWS UNIT 1. Lane Departure Warning System (LDWS) : Detects drive lane in front and engages warning function i ...
