Components

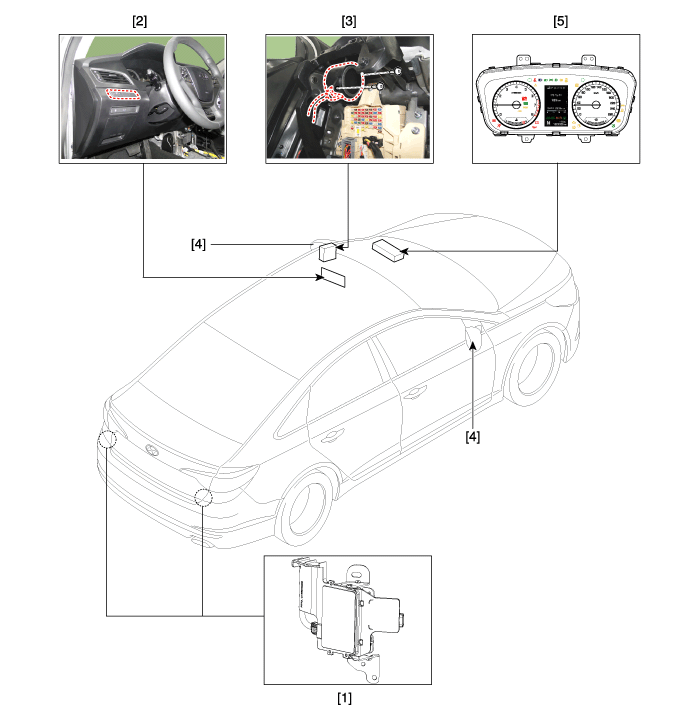

1. Blind Spot Detection (BSD) Unit
2. BSD switch
3. Speaker

4. BSD warning lamp
5. Cluster

Specifications

Specifications ItemsSpecificationRated voltageDC 12VOperating voltage9V ~ 16VOperating speed30?/h ~ 250?/hSensible distance70m (Sedan)Curvature radiusStart : More than 125m/30km/hStop : Less than ...

Description and Operation

Description BSD is a system that uses two magnetic wave radar sensors attached on the rear panel to measure the distance from the following vehicles and provides the sensing and (visual and aud ...
