Hyundai Sonata LF 2014-2019 Service Manual / Body Electrical System / BLUE LINK / Components and Components Location

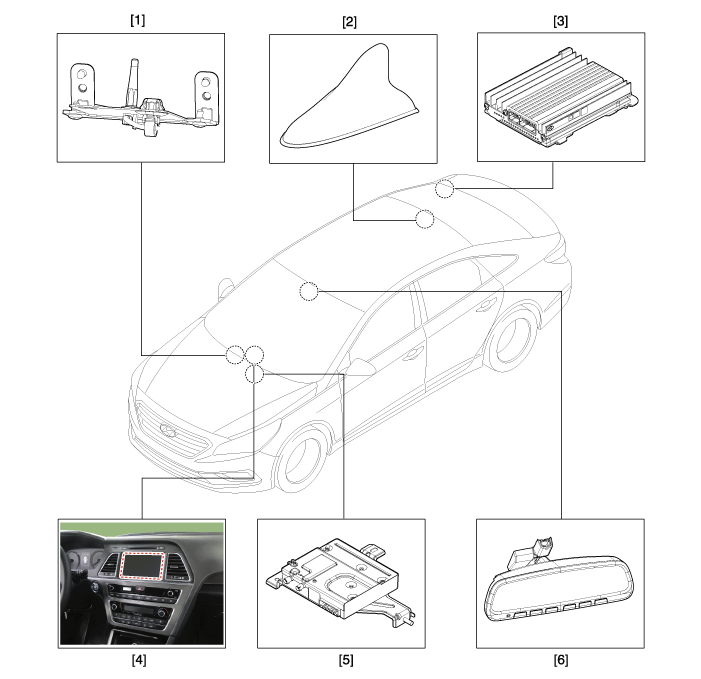

Components

1. WI-FI antenna (AVN Only)
2. Roof antenna
3. Extenal amplifier
4. AVN head unit (with Blue Link)
5. Blue Link unit (Audio Only)
6. Blue Link keypad

    BLUE LINK

    ..

    Schematic Diagrams

    S..
