Hyundai Sonata LF 2014-2019 Service Manual / Body (Interior and Exterior) / Rear Door / Components and Components Location

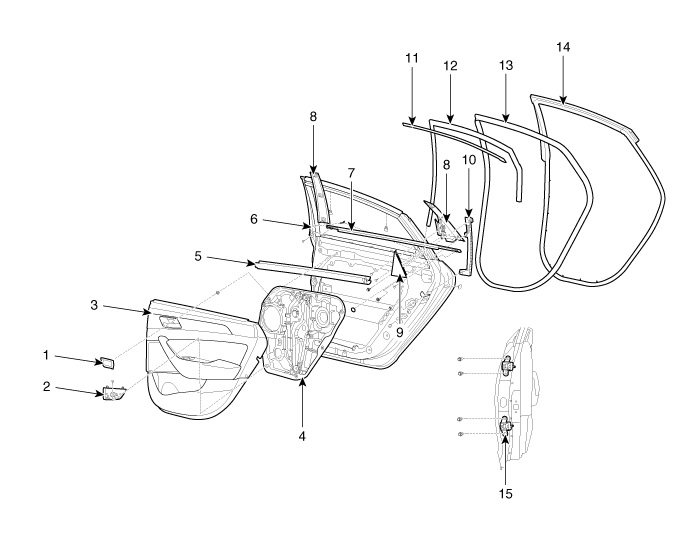

Components

1. Rear door inside handle cap
2. Rear door pull cap
3. Rear door trim
4. Rear door module
5. Rear door belt inside weatherstrip
6. Rear door panel
7. Rear door belt outside weatherstrip

8. Rear door frame garnish
9. Rear door delta inner cover
10. Rear door channel
11. Rear door frame moulding
12. Rear door glass run
13. Rear door body side weatherstrip
14. Rear door side weatherstrip
15. Rear door hinge

Rear Door

...

Repair procedures

Adjustment Glass Adjustment • Check the glass run channel for damage or deterioration, and replace them if necessary. 1. Remove the rear door trim. (Refer to Re ...
