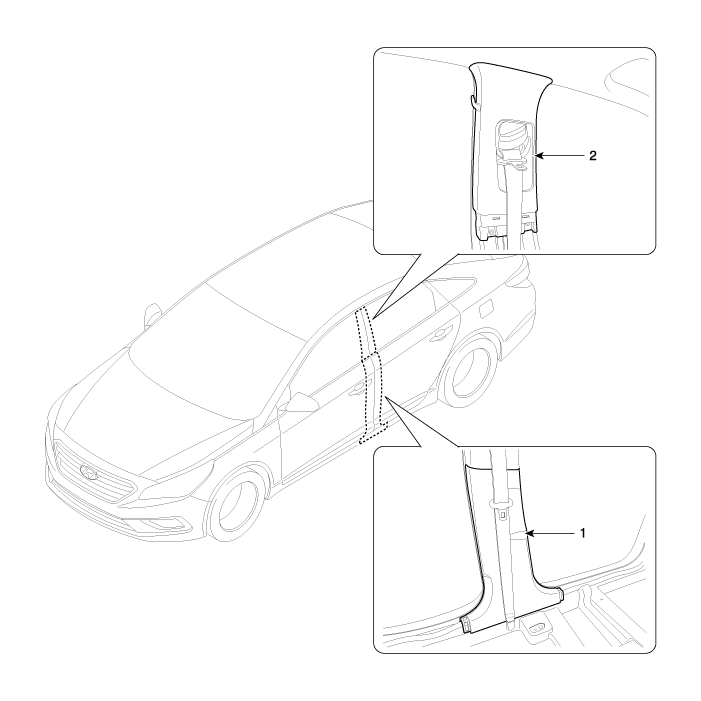

Component Location

1. Center pillar lower trim
2. Center pillar upper trim

Front Pillar Trim Repair procedures
Replacement     • Put on gloves to protect your hands.     • When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with pr ...

Center Pillar Trim Repair procedures
Replacement [Center Pillar Lower Trim]     • Put on gloves to protect your hands.     • When prying with a flat-tip screwdriver or use a prying ...
