Hyundai Sonata LF: Engine Control System / Camshaft Position Sensor (CMPS) Schematic Diagrams

Hyundai Sonata LF 2014-2019 Service Manual / Engine Control / Fuel System / Engine Control System / Camshaft Position Sensor (CMPS) Schematic Diagrams

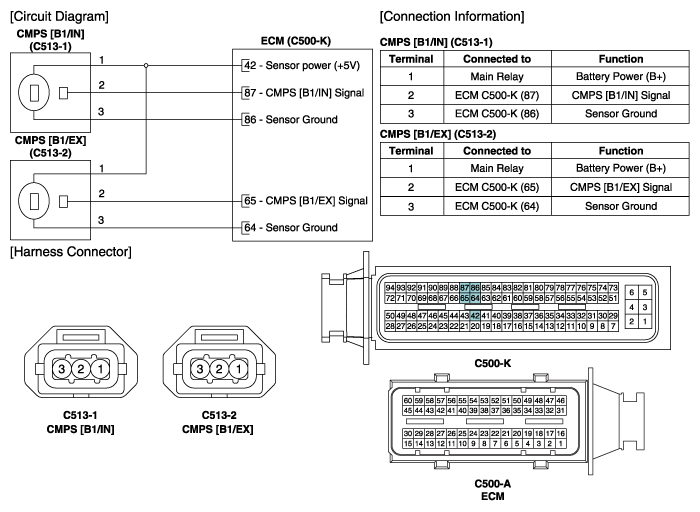

Circuit Diagram
