Hyundai Sonata: AVN System / AVN Antenna Components and Components Location

Hyundai Sonata LF 2014-2019 Service Manual / Body Electrical System / AVN System / AVN Antenna Components and Components Location

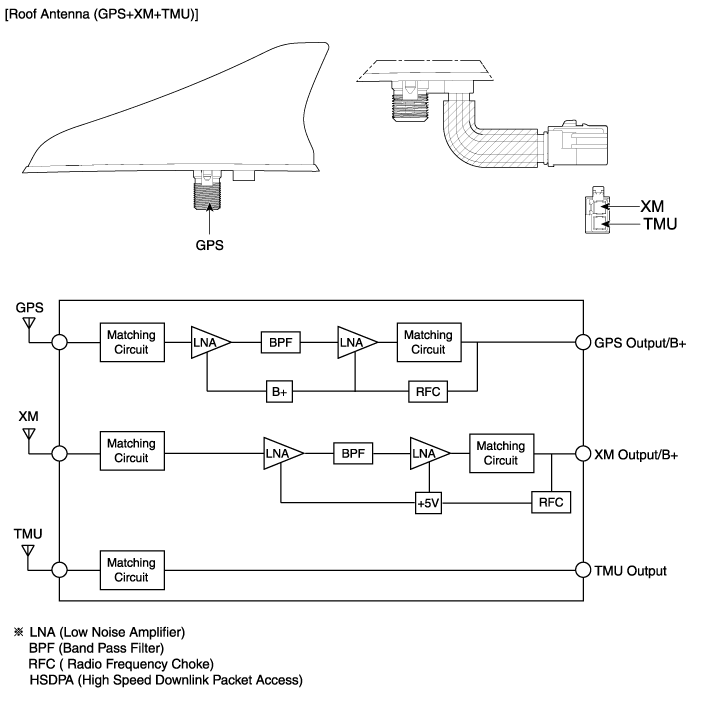

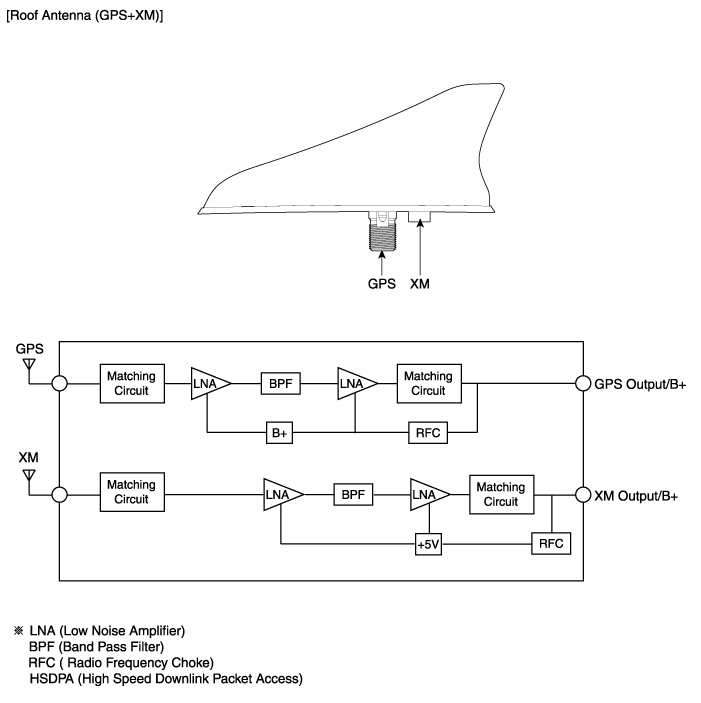

Components

AVN Remote Controller (Sonata Sports) Repair procedures
Inspection 1. Check for resistance between terminals in each switch position (LH). [LH : Audio + Hands free] SwitchConnector TerminalResistance(±5%)SEEK Up4-5430 ?SEEK Down1.11 k?MUTE3.11 k?Vol ...

AVN Antenna Repair procedures
Inspection Glass Antenna Test 1. Wrap aluminum foil (A) around the tip of the tester probe (B) as shown. 2. Touch one tester probe to the glass antenna terminal (A) and move the other teste ...
