Hyundai Sonata: Heating and Air Conditioning / Air conditioning
.jpg)

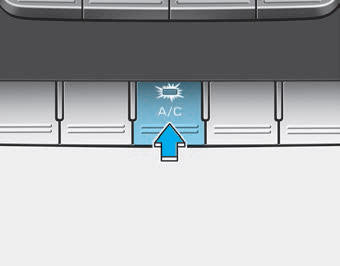

Press the A/C button to turn the system on (indicator light will illuminate) and off.
Fan speed control
Turn the knob to the right to increase the fan speed and airflow. Turn the knob
to the left to decrease fan speed and airflow.
Setting the fan speed control knob to the "0" position turns off the fa ...
System Operation
Ventilation
1. Select the Face Level
mode.
2. Set the air intake control to the outside (fresh) air position.
3. Set the temperature control to the desired position.
4. Set the fan speed control to t ...
