The AEB produces warning messages and warning alarms in accordance with the collision risk levels. Also, it controls the brakes in accordance with the collision risk levels.

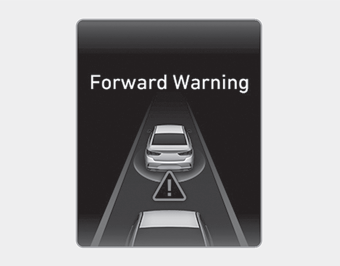

Forward Warning (1st warning)
This initial warning message appears on the LCD display with a warning chime.
The driver can select the initial warning activation time in the User Settings in the Driver LCD display. The options for the initial Forward Collision Warning include FAST, NORMAL, or SLOW initial warning time.

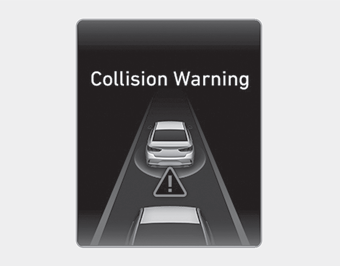

Collision Warning (2nd warning)

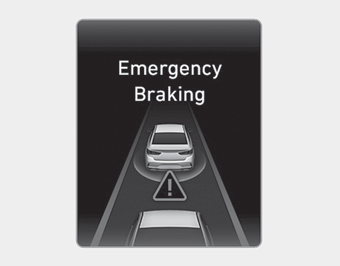

Emergency braking (3rd warning)
Brake operation
CAUTION
The driver should always use extreme caution while operating the vehicle, whether or not there is a warning message or alarm from the AEB system.
WARNING
The braking control cannot completely stop the vehicle nor avoid all collisions. The driver should hold the responsibility to safely drive and control the vehicle.
WARNING
The AEB system logic operates within certain parameters, such as the distance from the vehicle or pedestrian ahead, the speed of the vehicle ahead, and the driver's vehicle speed. Certain conditions such as inclement weather and road conditions may affect the operation of the AEB system.
