Hyundai Sonata: Tires and Wheels / Tire Care
For proper maintenance, safety, and maximum fuel economy, you must always maintain recommended tire inflation pressures and stay within the load limits and weight distribution recommended for your vehicle.
.jpg)

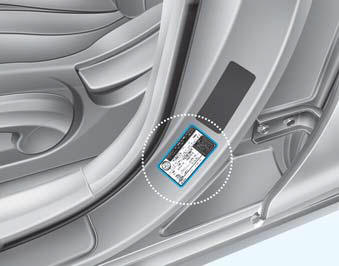

All specifications (sizes and pressures) can be found on a label attached to the driver’s side center pillar.
Tires and Wheels
WARNING
Tire failure may cause loss of vehicle control resulting in an accident. To
reduce risk of SERIOUS INJURY or DEATH, take the following precautions:
Inspect your tires monthly for proper inf ...
Recommended Cold Tire Inflation Pressures
All tire pressures (including the spare) should be checked when the tires are
cold. "Cold tires" means the vehicle has not been driven for at least three hours
or driven less than one mile (1.6 km). ...
