WARNING
Never store cigarette lighters, propane cylinders, or other flammable/explosive materials in the vehicle. These items may catch fire and/or explode if the vehicle is exposed to hot temperatures for extended periods.
WARNING
ALWAYS keep the storage compartment covers closed securely while driving. Items inside your vehicle are moving as fast as the vehicle. If you have to stop or turn quickly, or if there is a crash, the items may fly out of the compartment and may cause an injury if they strike the driver or a passenger.
NOTICE
To avoid possible theft, do not leave valuables in the storage compartments.
Center Console Storage
To open :
Press the button (1).

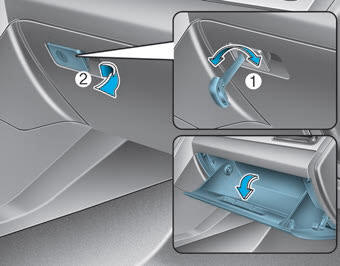

Glove Box
The glove box can be locked and unlocked with the mechanical key (1).
To open:
Pull the lever (2).
WARNING
ALWAYS close the glove box door after use.
An open glove box door can cause serious injury to the passenger in an accident, even if the passenger is wearing a seat belt.
Sunglass Holder
To open:
Press the cover and the holder will slowly open. Place your sunglasses in the compartment door with the lenses facing out.
To close:
Push back into position.
Make sure the sunglass holder is closed while driving.
WARNING
Multi box
You can use the multi box as a space that keeps the small objects.
