Hyundai Sonata: Sunroof / Sliding the sunroof
Pressing the sunroof control lever backward or forward momentarily to the second detent position completely opens or closes the sunroof even when the switch is released. To stop the sunroof at the desired position while the sunroof is in operation, press the sunroof control lever backward or forward and release the switch.
Information
To minimize wind noise while driving, it is recommended that you drive with the sunroof slightly closed (stop the sunroof about 2 inch (5 cm) before the maximum slide open position).
Automatic reverse

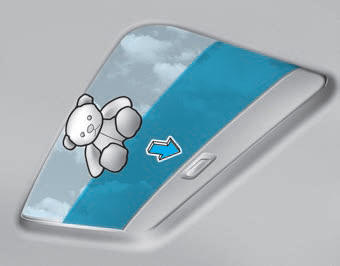

If the sunroof senses an obstacle while it is closing automatically, it should reverse direction and stop to allow the object to be cleared.
WARNING
Small objects that can get caught between the sunroof glass and the front glass channel may not be detected by the automatic reverse system. In this case, the sunroof glass will not detect the object and will not reverse direction.
Sunroof opening and closing
To open:
Press the sunroof control lever backward to the first detent position. Release
the switch when you want the sunroof to stop.
To close:
Press the sunroof control lever forward to the first d ...
Tilting the sunroof
Tilt the sunroof open:
Push the sunroof control lever upward until the sunroof moves to the desired
position.
To close the sunroof:
Pull the sunroof lever downward until the sunroof moves to the des ...
