Components

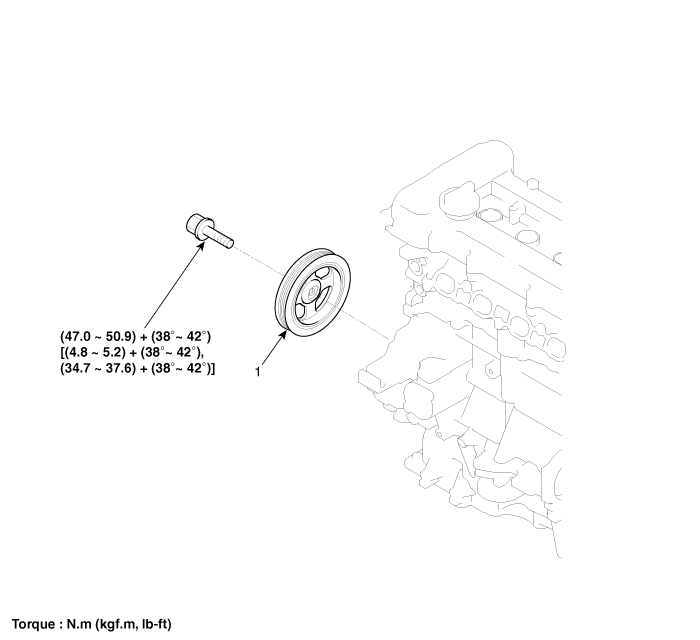

1. Crankshaft damper pulley

Drive Belt Tensioner Repair procedures
Removal and Installation 1. Remove the drive belt. (Refer to Timing System - "Dreve Belt") 2. Remove the alternator. (Refer to Engine Electrical System - "Alternator") 3. Remove the alte ...

Crankshaft Damper Pulley Repair procedures
Removal and Installation 1. Remove the drive belt. (Refer to Timing System - "Dreve Belt") 2. Remove the engineroom under cover. 3. Remove the passenger side front tire. 4. Remove th ...
