Hyundai Sonata: Mirrors / Side View Mirrors

Be sure to adjust mirror angles before driving.

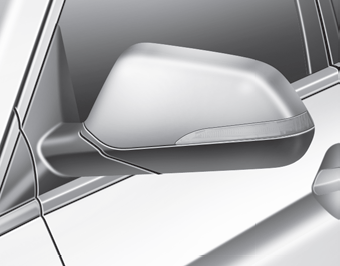

Your vehicle is equipped with both left-hand and right-hand side view mirrors. The mirrors can be adjusted remotely with the remote switch. The mirror heads can be folded to prevent damage during an automatic car wash or when passing through a narrow street.

The right side view mirror is convex. Objects seen in the mirror are closer than they appear.

Use your interior rearview mirror or direct observation to determine the actual distance of following vehicles when changing lanes.

WARNING

Do not adjust or fold the side view mirrors while driving. This may cause loss of vehicle control resulting in an accident.

CAUTION

Electric chromic mirror (ECM) with HomeLink® system, compass and Blue Link® (for U.S.A)
Your vehicle may be equipped with a Gentex Automatic-Dimming Mirror with a Z-Nav™ Electronic Compass Display and an Integrated HomeLink® Wireless Control System. During nighttime driving, this fe ...

Blind spot mirror
The Blind Spot Mirror (BSM) is a supplemental mirror that reduces the driver’s blind spot by showing the rear side area of the vehicle. The blind spot mirror is equipped on the left-hand side vie ...
