Hyundai Sonata: SRSCM / Side Impact Sensor (SIS) Components and Components Location

Hyundai Sonata LF 2014-2019 Service Manual / Restraint / SRSCM / Side Impact Sensor (SIS) Components and Components Location

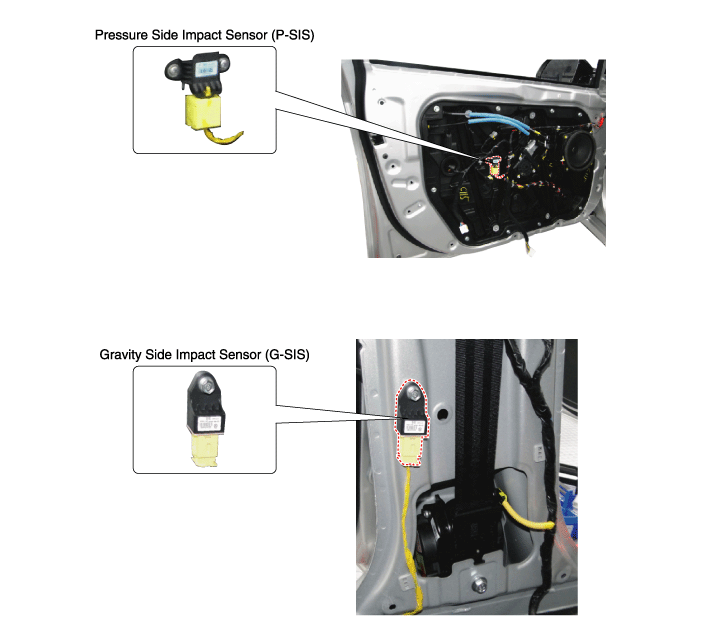

Components

Side Impact Sensor (SIS) Description and Operation
Description Side Impact Sensor (SIS) system consists of two P-SIS which are installed at each center of the front door module (LH and RH) and two SIS which are installed at each center pillar n ...

Side Impact Sensor (SIS) Repair procedures
Removal Pressure Side Impact Sensor     • Removal of the airbag must be performed according to the precautions/procedures described previously. • Before disconnect ...
