Hyundai Sonata: Fuses And Relays / Relay Box (Engine Compartment) Components and Components Location

Hyundai Sonata LF 2014-2019 Service Manual / Body Electrical System / Fuses And Relays / Relay Box (Engine Compartment) Components and Components Location

Component Location

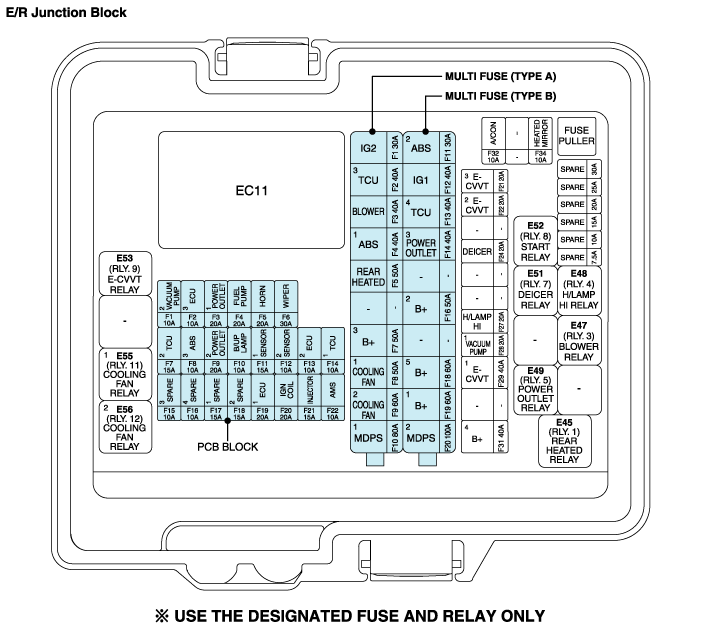

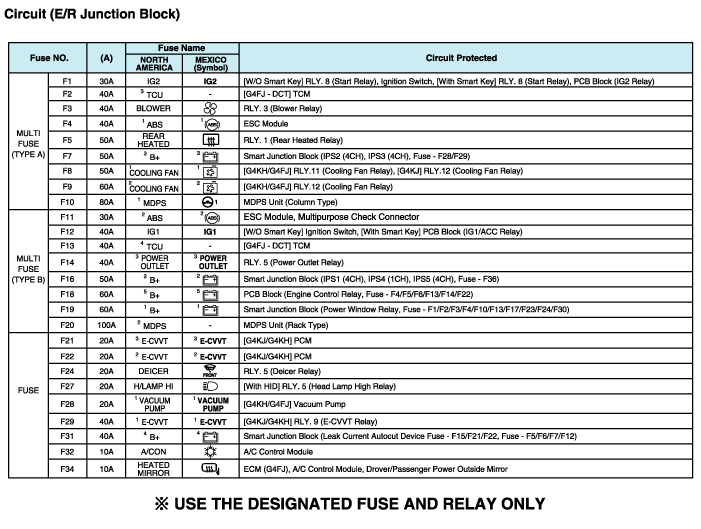

[Engine room junction block]

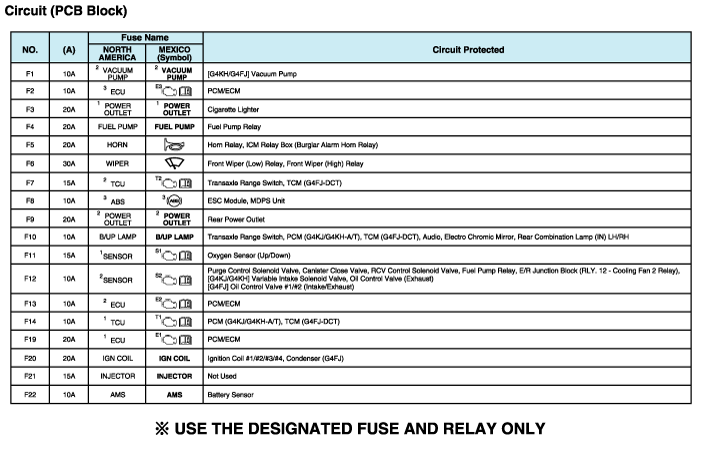

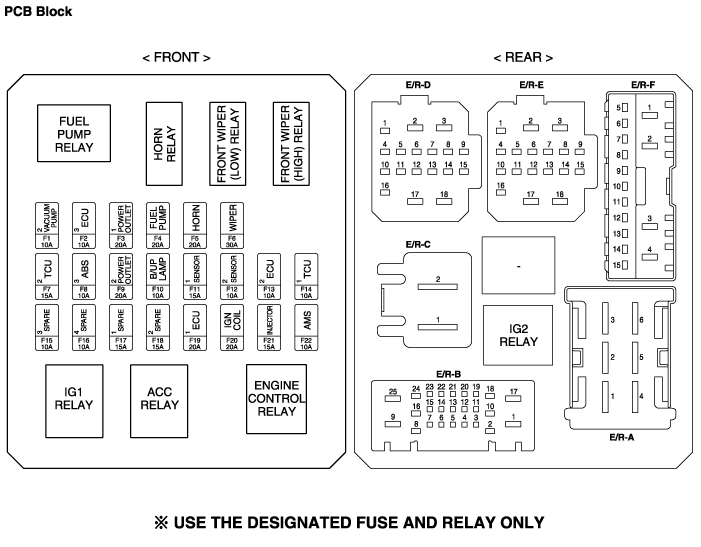

[Metal Core Block (PCB)]

Components and Components Location
Component Location [Engine Room] [Interior Relay] ...

Relay Box (Engine Compartment) Repair procedures
Inspection 1. Disconnect the negative (-) battery terminal. 2. Pull out the relay from the engine compartment relay block. Power Relay (Type A) Check for continuity between the terminals. ...
