Component Location

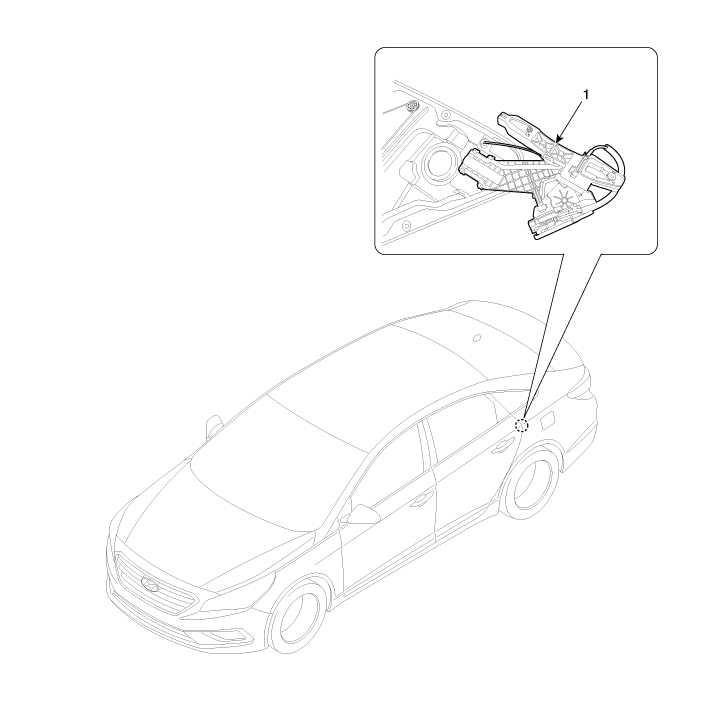

1. Rear door latch


Rear Door Side Weatherstrip Repair procedures
Replacement 1. Loosen the rear door checker (B) mounting bolt. 2. Detach the clips, then remove the rear door side weatherstrip (A). Tightening torque : 16.7 ~ 21.6 N.m (1.7 ~ 2.2 kgf.m, ...

Rear Door Latch Repair procedures
Replacement 1. Remove the rear door module. (Refer to Rear Door - "Rear Door Module") 2. Disconnect the rear door latch connector (A). 3. Remove the rear door inside handle cage (A). ...
