Hyundai Sonata: Panorama Sunroof / Panorama Sunroof Switch Components and Components Location

Hyundai Sonata LF 2014-2019 Service Manual / Body Electrical System / Panorama Sunroof / Panorama Sunroof Switch Components and Components Location

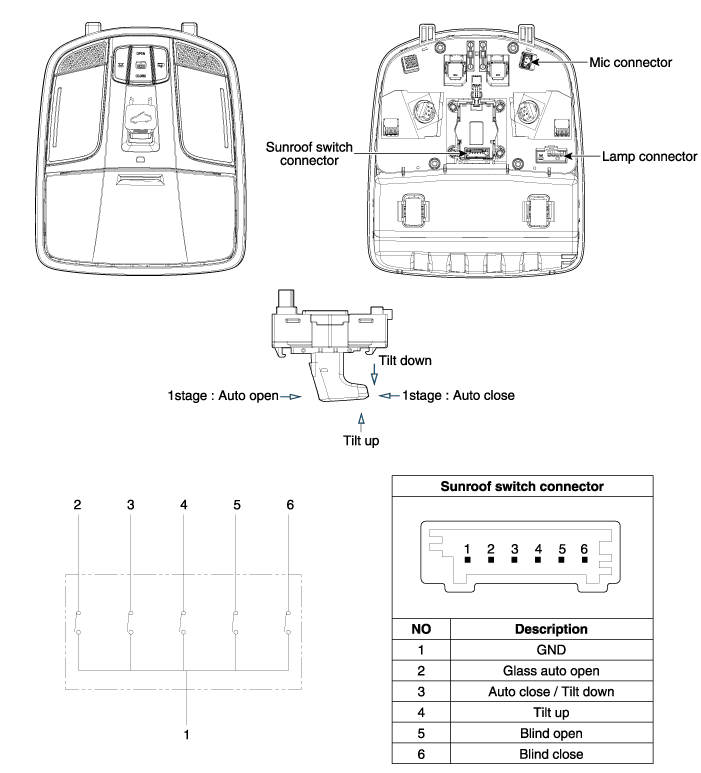

Components

Schematic Diagrams
Circuit Diagram NoSunroof wiringconnector(Vehicle side)Sunroof wiringconnector(Motor)Panorama glass motor(Master)Blind motor(Slave)1GND 1 GND 1GND 22Glass statussignal / tool(parameter)Glass sta ...

Panorama Sunroof Switch Repair procedures
Inspection 1. Disconnect the negative (-) battery terminal. 2. Open the sunglass case cover from the overhead console then remove the 2 screws holding the overhead console. Disconnect the sw ...
