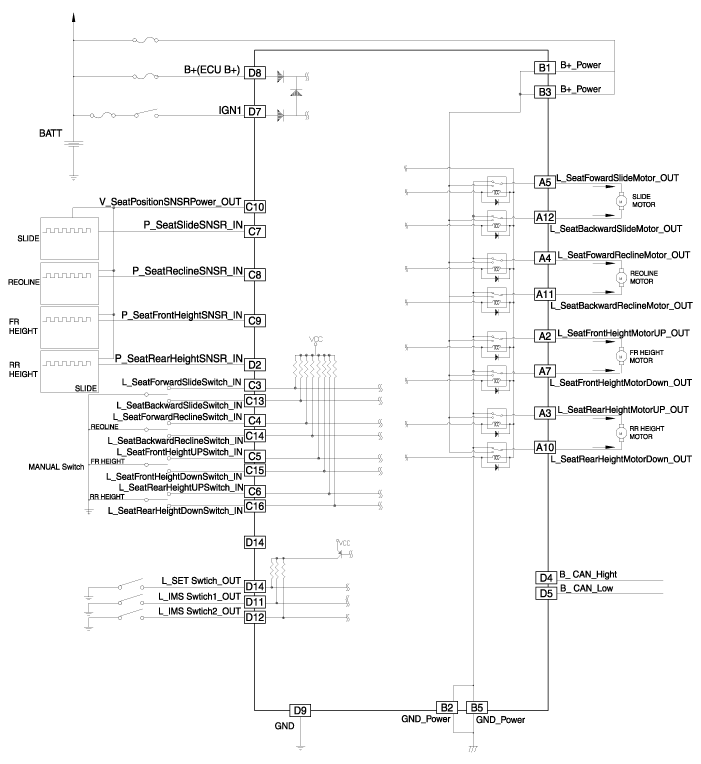

| Circuit Diagram |

Memory power seat unit Repair proceduresRemoval 1. Disconnect the negative (-) battery terminal. 2. Remove the driver seat assembly. (Refer to Body - "Front Seat Assembly") 3. Loosening the IMS unit mounting screws...
Components Location 1. Engine Control Module (ECM) 2. Manifold Absolute Pressure Sensor (MAPS) 3. Intake Air Temperature Sensor (IATS) 4. Boost Pressure Sensor (BPS) 5. Engine Coolant Temperature Sensor (ECTS) 6. Throttle Position Sensor (TPS) [integrated into ETC Module] 7...
Side Body A * These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ] Side Body B * These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ] Fender apron tooling hole (O7)Fender apron panel tooling hole (O7)Front door upper hinge mounting hole (O13)Front door lower hinge mounting hole (O13)Rear door upper hinge mounting hole (O13)Rear door lower hinge mounting hole (O13)Quarter panel tooling hole (O14)Quarter fixed glass mounting hole (O5...
