Hyundai Sonata: Windshield defrosting and defogging / Manual Climate Control System

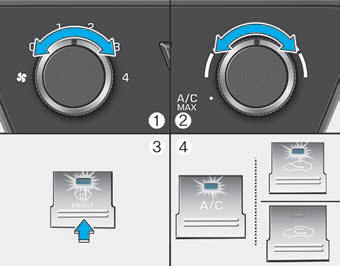

To defog inside windshield
.jpg)
1. Select any fan speed except "0" position.
2. Select desired temperature.
3. Select the
or
position.
4. The outside (fresh) air will be selected automatically. Additionally, the
air conditioning will automatically operate if the mode is selected to the
position.
If the air conditioning and outside (fresh) air position are not selected automatically, press the corresponding button manually.

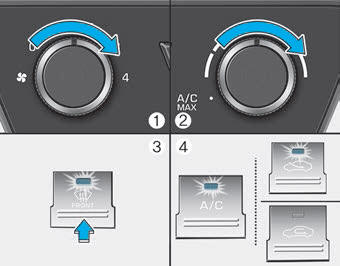

To defrost outside windshield
.jpg)
1. Set the fan speed to the highest (extreme right) position.
2. Set the temperature to the extreme hot position.
3. Select the position.
4. The outside (fresh) air and air conditioning will be selected automatically.
Windshield defrosting and defogging
WARNING
Windshield heating
Do not use the or
position during cooling operation
in extremely humid weather. The difference between the temperature of the outside
air and that of the windshield cou ...
Automatic Climate Control System
To defog inside windshield
1. Select desired fan speed.
2. Select desired temperature.
3. Press the defroster button ().
4. The outside (fresh) air position will be selected automatically.
If the out ...
