Hyundai Sonata: Seat Electrical / Lumber Support Units Components and Components Location

Hyundai Sonata LF 2014-2019 Service Manual / Body Electrical System / Seat Electrical / Lumber Support Units Components and Components Location

Component Location

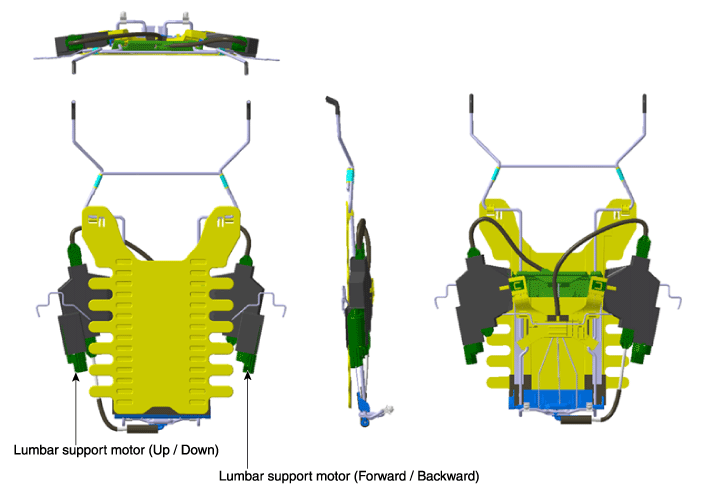

[Mechanical Lumbar Support Assembly]

Air Ventilation Seat Repair procedures
Removal [Ventilation Blower] 1. Disconnect the negative (-) battery terminal. 2. Remove the front seat. (Refer to Body - "Front Seat Assembly") 3. Remove the under cover assembly. (Ref ...

Lumber Support Units Repair procedures
Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the front seat assembly. (Refer to Body - "Front Seat Assembly") 3. Remove the seat back. (Refer to Body - "Front Seat ...
