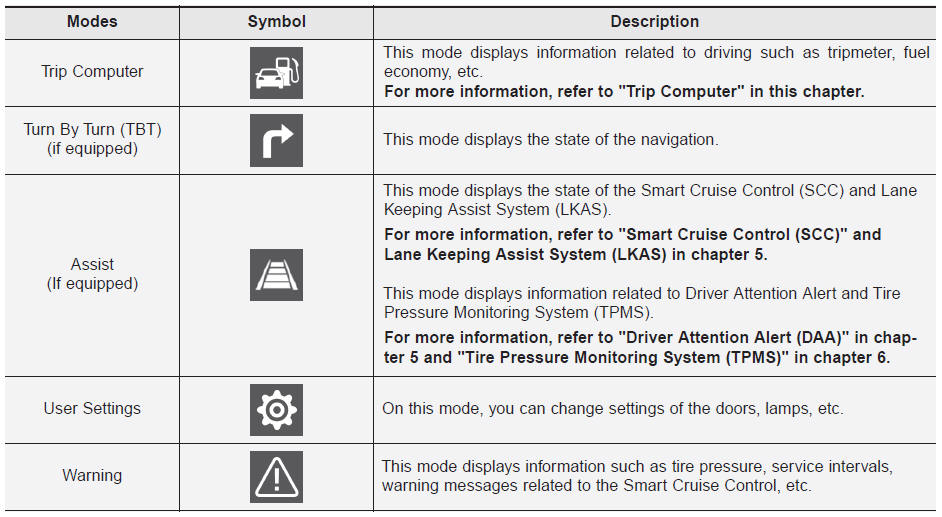

Hyundai Sonata: LCD Display / LCD Modes

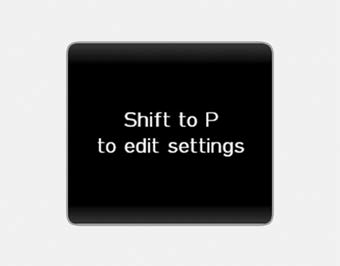

Shift to P to edit settings

This warning message illuminates if you try to select the other User Settings item when driving.

For safety, change the User Settings after parking the vehicle and moving the shift lever to P (Park) position.

Quick guide (Help, if equipped)

Press and hold the OK button in the User Settings Mode, the explanation about the selected item is displayed.

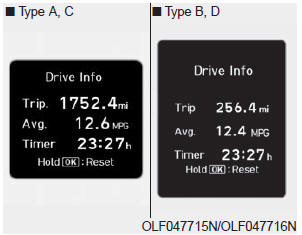

Trip Computer Mode

This mode displays driving information like the tripmeter, fuel economy, and so on.

Turn By Turn (TBT) Mode

This mode displays the state of the navigation.

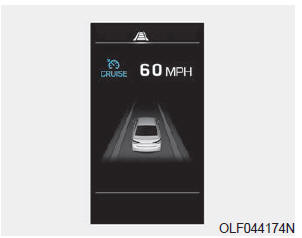

Assist mode

SCC/LKAS/DAA

This mode displays the state of the Smart Cruise Control (SCC), Lane Keeping Assist System (LKAS) and Driver Attention Alert (DAA).

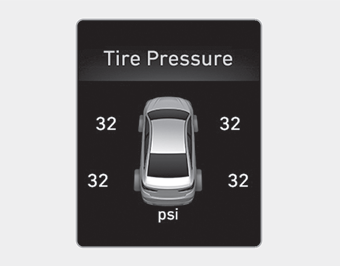

Tire Pressure

This mode displays information related to Tire Pressure.

Warning Message Mode

If one of followings occurs, warning messages will be displayed on the information mode for several seconds.

- Malfunction of below systems

User settings mode

In this mode, you can change the setting of the instrument cluster, doors, lamps, etc.

1. Driving Assist
2. Door
3. Lights
4. Sound
5. Convenience
6. Service interval
7. Other features
8. Reset

1. Driving Assist

• LKAS (Lane Keeping Assist System)

- Lane Departure Warning/Standard LKA/Active LKA

To adjust the sensitivity of the Lane Keeping Assist System.

• DAA (Driver Attention Alert)

To adjust the sensitivity of the Driver Attention Alert (DAA).

- Off/Normal/Early

• SCC Response (Smart Cruise Control)

- Slow/Normal/Fast

To adjust the sensitivity of the Smart Cruise Control system.

• AEB (Auton. Emergency Braking)

To activate or deactivate the Autonomous Emergency Braking (AEB).

• FCW (Fwd. Collision Warning)

- Late/Normal/Early

To adjust the initial warning alert time for Autonomous Emergency Braking system.

• BSD Sound (Blind Spot Detection)

To activate or deactivate the Blind Spot Detection sound.

• RCTA (Rear Cross Traffic Alert)

To activate or deactivate the Rear Cross Traffic Alert system.

2. Door

• Automatic Lock

- Disable: The auto door lock operation will be canceled.
- Enable on Speed: All doors will be automatically locked when the vehicle speed exceeds 15 km/h (9.3 mph).
- Enable on Shift: All doors will be automatically locked if the automatic transmission shift lever is shifted from the P (Park) position to the R (Reverse), N (Neutral), or D (Drive) position.

• Automatic Unlock

- Disable: The auto door unlock operation will be canceled.
- Vehicle Off: All doors will be automatically unlocked when the Engine Star/Stop button is set to the OFF position. (if equipped with smart key)
- On Key Out: All doors will be automatically unlocked when the ignition key is removed from the ignition switch. (if equipped with remote key)
- Driver Door Unlock: All doors will be automatically unlocked when the driver’s door is opened.
- On Shift to P: All doors will be automatically unlocked if the automatic transmission shift lever is shifted to the P (Park) position.

• Smart Trunk

To activate or deactivate the Smart Trunk system.

For more details, refer to "Smart Trunk" in this chapter.

3. Lights

• One Touch Turn Signal

- Off: The one touch turn signal function will be deactivated.
- 3, 5, 7 Flashes: The turn signal indicator will blink 3, 5, or 7 times when the turn signal lever is moved slightly.

• Head Lamp Delay

To activate or deactivate the headlamp delay function.

• Welcome Light

To activate or deactivate the welcome light function.

4. Sound

• Park Assist Volume

- Softer/Louder

To adjust the Park Assist System volume.

• Welcome Sound

To activate or deactivate the welcome sound.

5. Convenience

• Seat Easy Access

- Off: The seat easy access function is deactivated.
- Normal/Extended: When you turn off the engine, the driver's seat will automatically move rearward short (Normal) or long (Extended) for you to enter or exit the vehicle more comfortably.

• Wireless Charging System

To activate or deactivate the wireless charging system in the front seat.

• Wiper/Lights Display

To activate or deactivate the Wiper/ Light mode.

When activated, the LCD display shows the selected Wiper/Light mode whenever you changed the mode.

• Gear Position Pop-up

To activate or deactivate the gear position pop-up.

When activated, the gear position will be displayed on the LCD display.

6. Service Interval

• Enabled service Interval

To activate or deactivate the service interval function.

• Adjust Interval

If the service interval menu is activated, you may adjust the time and distance.

Information

To use the service interval menu, consult an authorized HYUNDAI dealer.

If the service interval is activated and the time and distance is adjusted, messages are displayed in the following situations each time the vehicle is turned on.

- Service in

: Displayed to inform the driver the remaining mileage and days to service.

- Service required

: Displayed when the mileage and days to service has been reached or passed.

Information

If any of the following conditions occur, the mileage and number of days to service may be incorrect.

- The battery cable is disconnected.
- The fuse switch is turned off.
- The battery is discharged.

7. Other Features

• Fuel Economy Auto Reset

- Off: The average fuel economy will not reset automatically whenever refueling.
- After Ignition: The average fuel economy will reset automatically whenever it has passed 4 hours after turning OFF the engine.
- After recharging: The average fuel economy will reset automatically when refueling.

• Fuel Economy Unit

To select the fuel economy unit. (km/L, L/100, MPG)

• Temperature Unit

To select the temperature unit. (°C,°F)

• Tire Pressure Unit

To select the tire pressure unit. (psi, kPa, bar)

8. Reset

You can reset the menus in the User Settings Mode. All menus in the User Settings Mode are initialized, except language and service interval.
