Hyundai Sonata: With Spare Tire / Jack and tools
.jpg)

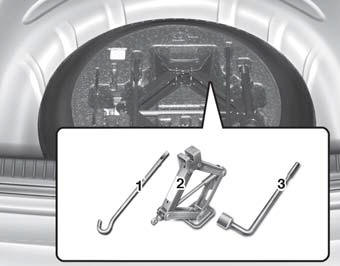

➀ Jack handle
② Jack
③ Wheel nut wrench
The jack, jack handle, and wheel lug nut wrench are stored in the luggage compartment under the luggage box cover.
The jack is provided for emergency tire changing only.
.jpg)

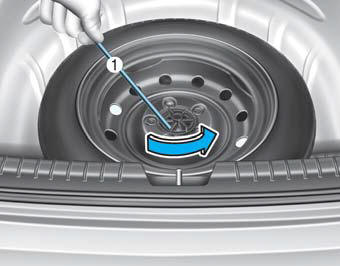

Turn the winged hold down bolt counterclockwise to remove the spare tire.
Store the spare tire in the same compartment by turning the winged hold down bolt clockwise.
To prevent the spare tire and tools from "rattling", store them in their proper location.
.jpg)

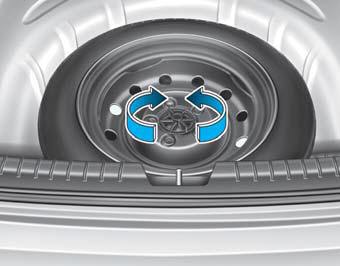

If it is hard to loosen the tire holddown wing bolt by hand, you can loosen it easily using the jack handle.
1. Put the jack handle (1) inside of the tire hold-down wing bolt.
2. Turn the tire hold-down wing bolt counterclockwise with the jack handle.
With Spare Tire
WARNING
Changing a tire can be dangerous. Follow the instructions in this section
when changing a tire to reduce the risk of serious injury or death.
CAUTION
Be careful as you use the jack handle to ...
Changing tires
WARNING
A vehicle can slip or roll off of a jack causing serious injury or death to
you or those nearby. Take the following safety precautions:
Never place any portion of your body under a vehicle ...
