Hyundai Sonata: Dual Clutch Transmission Control System / Input shaft speed sensor 1 Components and Components Location

Hyundai Sonata LF 2014-2019 Service Manual / DCT (Dual Clutch Transmission) System / Dual Clutch Transmission Control System / Input shaft speed sensor 1 Components and Components Location

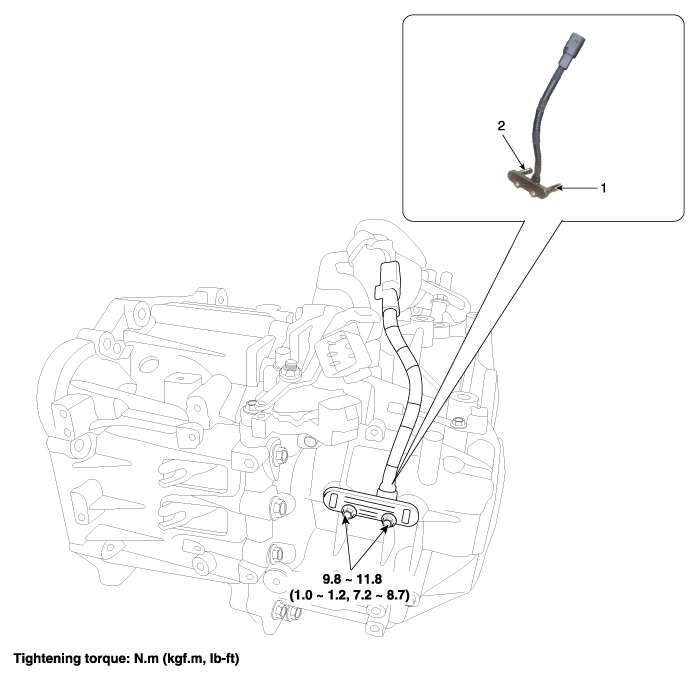

Components

1. Input shaft speed sensor 1 (Odd)

2. Input shaft speed sensor 2 (Even)

Gear Actuator Assembly Repair procedures

Removal • When gear actuator removing, set control shaft lever to neutral position. 1. Remove the air cleaner assembly and air duct. (Refer to Engine Mechnical Sys ...

Input shaft speed sensor 1 Specifications

Specification ItemSpecificationTypeHall effect sensorOperation condition (°C)°F(-40 ~ 150)-40 ~ 302Output signal (mA)High: 11.8 ~ 16.8Low: 5.9 ~ 8.4 ...
