Hyundai Sonata: Engine Control System / Engine Coolant Temperature Sensor (ECTS) Schematic Diagrams

Hyundai Sonata LF 2014-2019 Service Manual / Engine Control / Fuel System / Engine Control System / Engine Coolant Temperature Sensor (ECTS) Schematic Diagrams

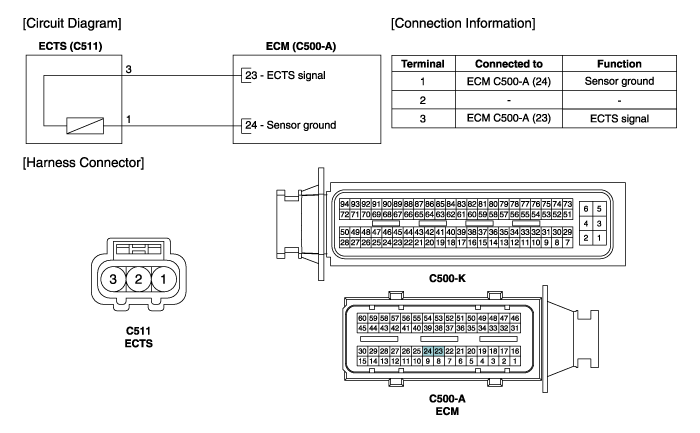

Circuit Diagram

Engine Coolant Temperature Sensor (ECTS) Specifications
Specification TemperatureResistance (k?)°C°F-40-4048.14-20-414.13 ~ 16.830325.7920682.31 ~ 2.59401041.15601400.59801760.32 ...

Engine Coolant Temperature Sensor (ECTS) Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Remove the ECTS (Refer to "Removal"). 3. After immersing the thermistor of the sensor into engine coolant, measure resistance between the ECT ...
