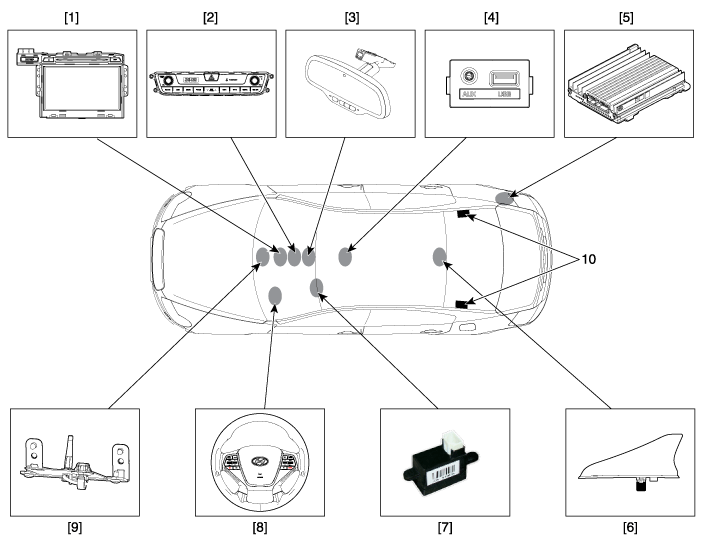

Component Location

1. AVN head unit
2. AVN Keyboard
3. Blue link keypad (TMS)
4. Multimedia jack
5. External amplifier

6. Roof antenna
7. Hands-free mic (Built-in overhead console)
8. Steering wheel remote control
9. Wi-Fi antenna
10. Glass antenna amplifier (Diversity type)
