Hyundai Sonata: Front Seat Belt / Components and Components Location

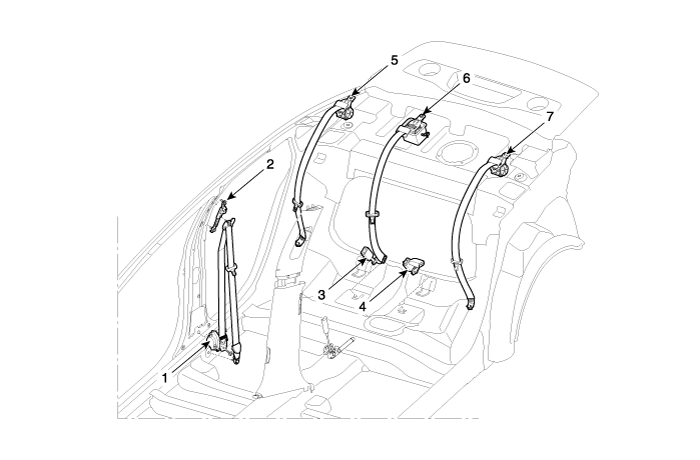

| Components |
| 1. Front seat belt retractor 2. Height adjuster 3. Rear seat belt buckle [RH] 4. Rear seat belt buckle [LH] | 5. Rear seat belt retractor [RH] 6. Rear center seat belt retractor 7. Rear seat belt retractor [LH] |
Front Seat Belt
...
Front Seat Belt Retractor Components and Components Location
Component Location
1. Front seat belt retractor
...
Other information:
Hyundai Sonata LF 2014-2019 Service Manual: Rear Seat Belt Buckle Repair procedures
Replacement
1.
Remove the rear seat cushion assembly.
(Refer to Rear Seat - "Rear Seat Assembly")
2.
Loosen the mounting bolt, and then remove the rear seat belt buckle (A).
[LH]
Tightening torque :
39.2 ~ 53.9 N.m (4.0 ~ 5.5 kgf.m, 28.9 ~ 39.8 lb-ft)
[RH]
Tightening torque :
3 ...
