Hyundai Sonata: Engine Control System / Components and Components Location

Components Location

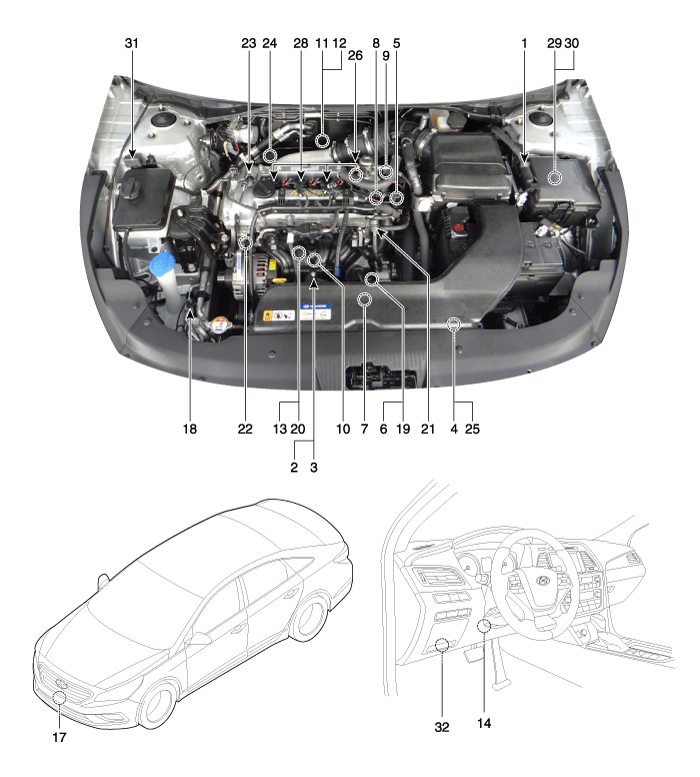

1. Engine Control Module (ECM)
2. Manifold Absolute Pressure Sensor (MAPS)
3. Intake Air Temperature Sensor (IATS)
4. Boost Pressure Sensor (BPS)
5. Engine Coolant Temperature Sensor (ECTS)
6. Throttle Position Sensor (TPS) [integrated into ETC Module]
7. Crankshaft Position Sensor (CKPS)
8. Camshaft Position Sensor (CMPS) [Bank 1 / Intake]
9. Camshaft Position Sensor (CMPS) [Bank 1 / Exhaust]
10. Knock Sensor (KS)
11. Heated Oxygen Sensor (HO2S) [Bank 1 / Sensor 1]
12. Heated Oxygen Sensor (HO2S) [Bank 1 / Sensor 2]

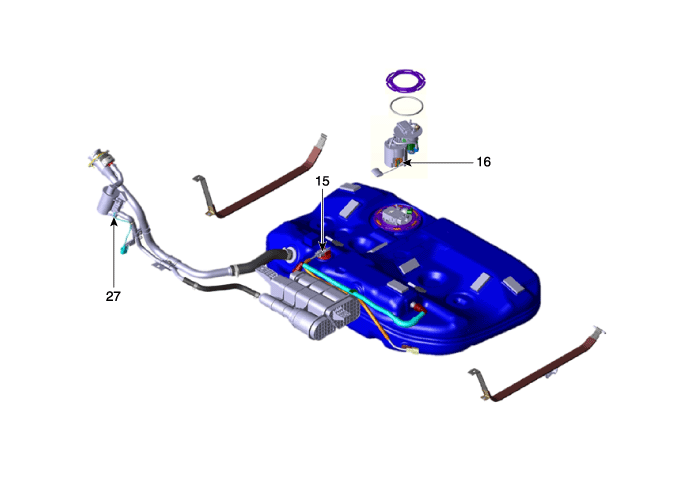

13. Rail Pressure Sensor (RPS)
14. Accelerator Position Sensor (APS)
15. Fuel Tank Pressure Sensor (FTPS)
16. Fuel Level Sensor (FLS)
17. Ambient Temperature Sensor (ATS)
18. A/C Pressure Transducer (APT)
19. ETC Motor [integrated into ETC Module]
20. Injector
21. Purge Control Solenoid Valve (PCSV)
22. CVVT Oil Control Valve (OCV) [Bank 1 / Intake]
23. CVVT Oil Control Valve (OCV) [Bank 1 / Exhaust]
24. Electric Waste Gate Actuator (EWGA)
25. RCV Control Solenoid Valve
26. Fuel Pressure Control Valve
27. Canister Close Valve (CCV)
28. Ignition Coil
29. Main Relay
30. Fuel Pump Relay
31. Data Link Connector (DLC) [16-Pin]
32. Multi-Purpose Check Connector [20-Pin]

1. Engine Control Module (ECM)
2. Manifold Absolute Pressure Sensor (MAPS)
3. Intake Air Temperature Sensor (IATS)

4. Boost Pressure Sensor (BPS)
5. Engine Coolant Temperature Sensor (ECTS)

6. Throttle Position Sensor (TPS)
19. ETC Motor
7. Crankshaft Position Sensor (CKPS)

8. Camshaft Position Sensor (CMPS) [Bank 1 / Intake]
9. Camshaft Position Sensor (CMPS) [Bank 1 / Exhaust]
10. Knock Sensor (KS)

11. Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 1]
12. Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 2]
13. Rail Pressure Sensor (RPS)
20. Injector

14. Accelerator Position Sensor (APS)
15. Fuel Tank Pressure Sensor (FTPS)

16. Fuel Level Sender (FLS)
17. Ambient Temperature Sensor (ATS)

18. A/C Pressure Transducer (APT)
21. Purge Control Solenoid Valve (PCSV)

22. CVVT Oil Control Valve (OCV) [Bank 1 / Intake]
23. CVVT Oil Control Valve (OCV) [Bank 1 / Exhaust]

24. Electric Waste Gate Actuator (EWGA)
25. RCV Control Solenoid Valve

26. Fuel Pressure Control Valve
27. Canister Close Valve (CCV)

28. Ignition Coil
29. Main Relay
30. Fuel Pump Relay

31. Data Link Connector (DLC) [16-Pin]
32. Multi-Purpose Check Connector [20-Pin]
