Hyundai Sonata LF: Timing System / Components and Components Location

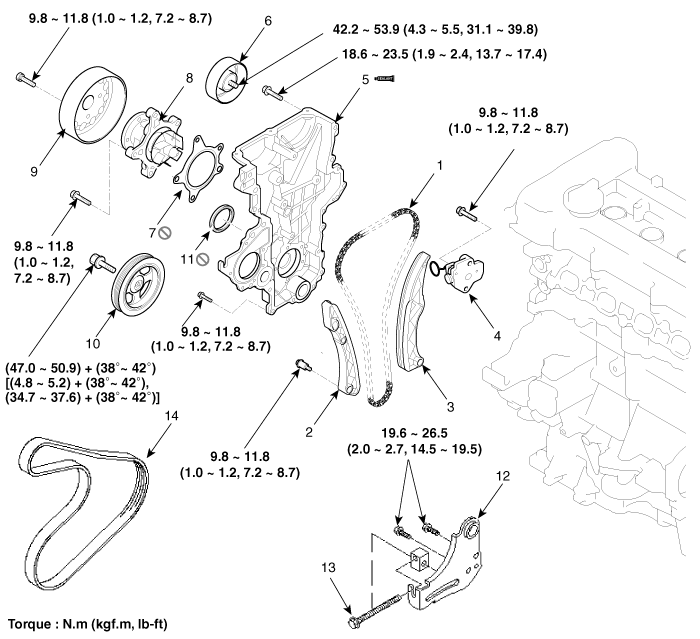

| Components |
| 1. Timing chain 2. Timing chain guide 3. Timing chain arm 4. Timing chain auto tensioner 5. Timing chain cover 6. Drive belt idler 7. Water pump gasket | 8. Water pump 9. Water pump pulley 10. Crank shaft pulley 11. Front oil seal 12. Alternator bracket 13. Tension adjust bolt 14. Drive belt |
