Hyundai Sonata: Dual Clutch Transmission Control System / Clutch Actuator Assembly Schematic Diagrams

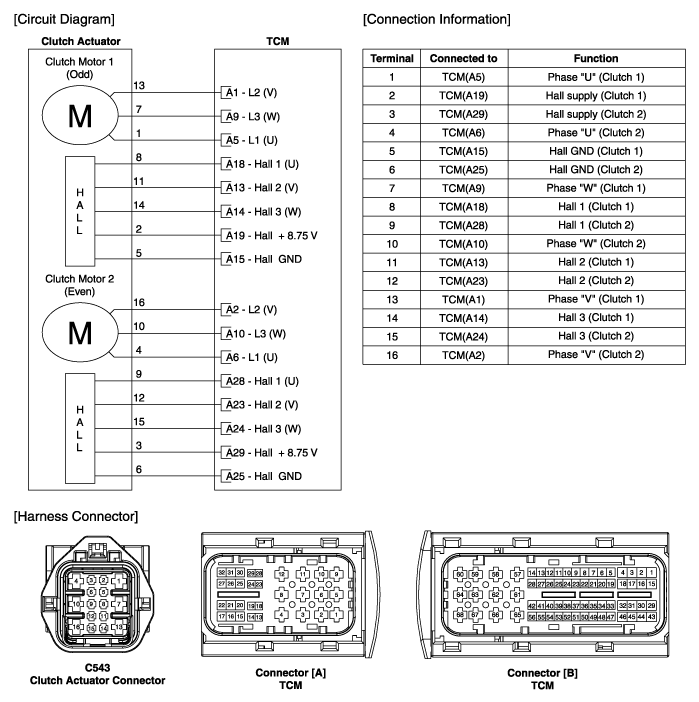

Circuit Diagram

Clutch Actuator Assembly Description and Operation
Description • Components location : DCT (Dual Clutch Transmission) • Function The clutch actuator receives signals from the Transmission Control Module (TCM) and controls the clutch. ...

Clutch Actuator Assembly Repair procedures
Removal 1. Remove the air cleaner assembly and air duct. (Refer to Engine Mechnical System - "Air cleaner") 2. Remove the TCM. (Refer to Dual Clutch Transmission - "TCM") 3. Remove the b ...

Other information:

Hyundai Sonata LF 2014-2019 Service Manual: Purge Control Solenoid Valve (PCSV) Description and Operation
Description Purge Control Solenoid Valve (PCSV) is installed on the surge tank and controls the passage between the canister and the intake manifold. It is a solenoid valve and is open when the ECM grounds the valve control line. When the passage is open (PCSV ON), fuel vapor stored in th ...

Hyundai Sonata LF 2014-2019 Service Manual: Head Lamps Repair procedures
Inspection 1. Check the battery voltage. (Low beam will be on when the battery voltage above 9V.) 2. Check the fuse and relay. 3. Check the polarity of ballast. (If the polarity are changed, low beam doesn't lighten) 4. Check the bulb connector securely. 5. Visually bulb checking ...
