Hyundai Sonata: Tire Pressure Monitoring System (TPMS) / Check Tire Pressure
.jpg)

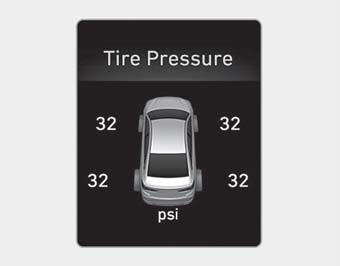

- You can check the tire pressure in the Information Mode on the cluster.
- Tire pressure is displayed after a few minutes of driving after initial engine start up.
- If tire pressure is not displayed when the vehicle is stopped, "Drive to display" message will appear. After driving, check the tire pressure.
- The displayed tire pressure values may differ from those measured with a tire pressure gauge.
- You can change the tire pressure unit in the User Settings Mode on the cluster.
- psi, kpa, bar
