Hyundai Sonata: Engine Control System / Boost Pressure Sensor (BPS) Schematic Diagrams

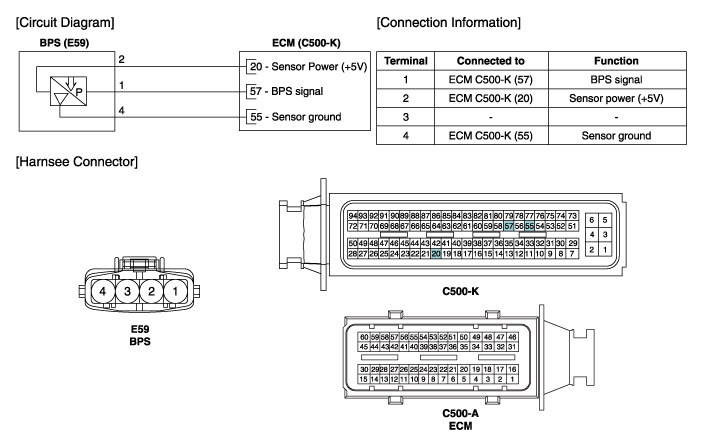

Circuit Diagram

Boost Pressure Sensor (BPS) Specifications
Specification Pressure[kPa (kg/cm? / psi)]Resistance (k?)32.5 (0.33, 4.71)0.5284 (2.90, 41.19)4.5 ...

Boost Pressure Sensor (BPS) Repair procedures
Inspection 1. Connect a GDS on the Data Link Connector (DLC). 2. Measure the output voltage of the BPS at idle and IG ON. Specification: Refer to "Specification" Removal 1. Turn th ...
